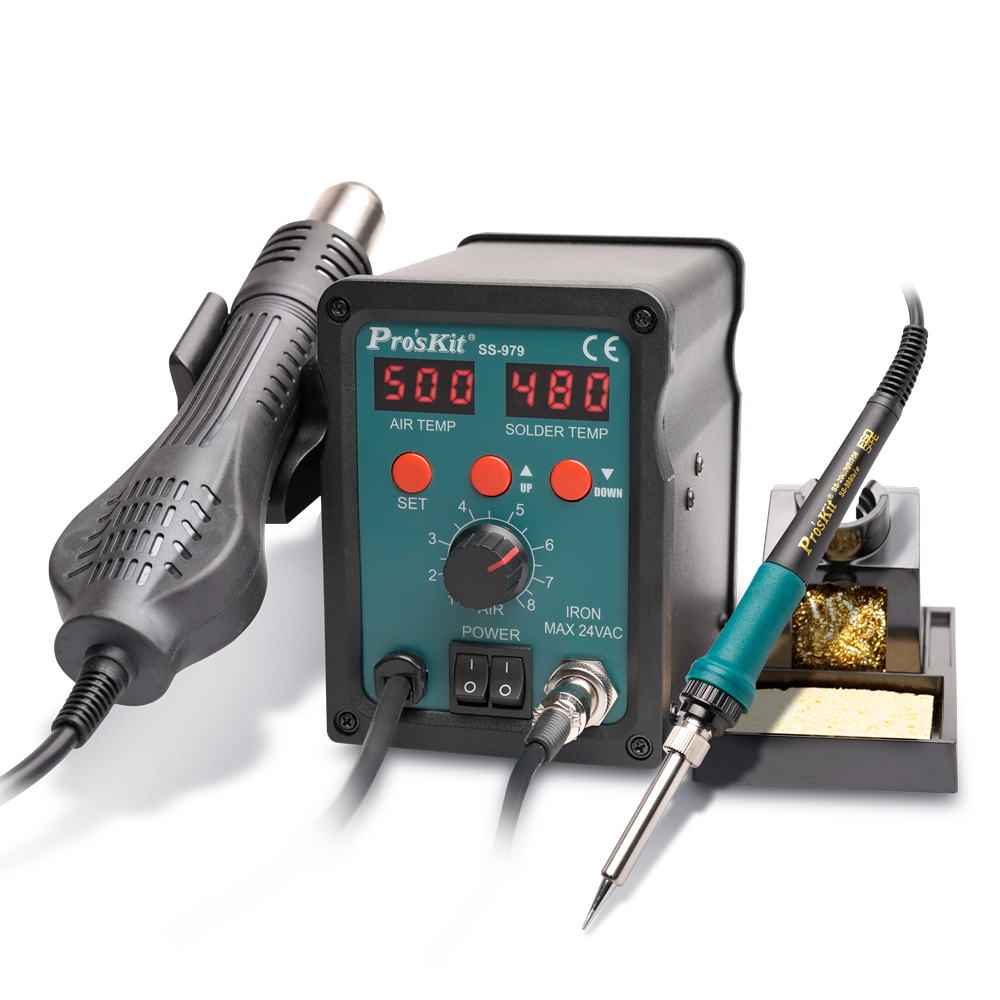

Proskit SS-979B 2 In 1 SMD Hot Air Rework Station (700W; 60W)

Total power consumption: 760W

Hot air power: 700W

Soldering power: 60W

Hot air temperature: 100-500°C

Soldering temperature: 200-480°C

Hot air output voltage: 220-240V

Soldering output voltage: 24V~

Digital display: LED

Hot air heating element: metal heating core

Soldering heating element: Alumina ceramic heater

Hot air volume: 120L/Min. (Max.)

Equipment noise: <45dB

Fuse type: 250V/5A

Certificate: CE & RoHS

Weight: 2.5kgs

Dimension (mm): 170 x 170 x 140 (include holder)

Replacement soldering iron: 9SS-900N-SI

Replacement soldering heater: 9SS-900N-HT

Replacement nozzle: 9SS-969-A1 (ID: 4.3mm)

9SS-969-A2 (ID: 7.4mm)

9SS-969-A3 (ID: 11.2mm)
