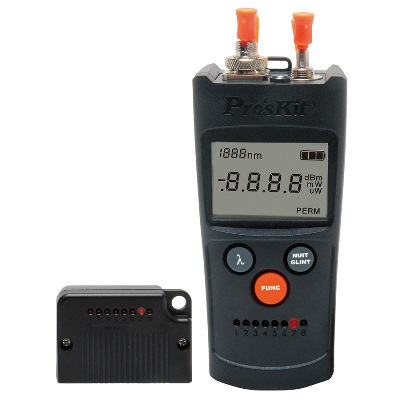

Pro'skit MT-7602 4 IN 1 FIBER OPTIC POWER MULTIMETER

* Optical Power Meter:Detector TypeInGaAs

Optical Connector:ST/SC/FC & 2.5mm Universal

Calibrated Wavelengths:850、1300、1310、1490、1550、1625 nm

Measurement Range:+6 ~ -70 dBm

Accuracy:± 0.2 dB

Power Measurement Linearity:±0.1 dB

Display Resolution:±0.01 dB

Power Display Units:dBm、mW、μW

* Visual Fault Locator:Output power:＜1mW

Range:3~5 kM @SM

Connector:ST/SC/FC & 2.5mm Universal

Laser safety rating:Class 2

Wavelength:650nm±20nm

Output modes:Continuous (CW) 、2 Hz pulsed

Reverse battery protection:Yes

* Lan Cable Tester:Connector:RJ45 & RJ11 shared

Cable:UTP LAN cable(8P8C)、Telecom cable(6P2C/6P4C/6P6C)

Measuring length Max.:600 meter

* Automatic Power Off:10 min.(Can be cancelled)

Low Battery Warning:Low battery energy

Battery Life:＞ 160 houre (only OPM)

Power source:AA/LR6 1.5V×2 pcs

Size:105×52×34 mm

Manual:
