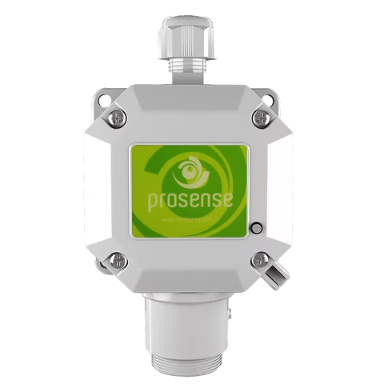

Prosense PPS Carbon monoxide Gas Detector (0–300 ppm)

Target Gas: Carbon Monoxide (CO)

Sensor Type: Electrochemical

Output Signal: Modbus RS485 RTU

Sensor Warm-Up: 60 sec

Response Time: <30 sec

Measuring Range: 0–300 ppm (CO)

Accuracy: ±1%

Operating Temperature: -20°C to +50°C

Humidity: 5–95% RH

Input Voltage: Min 10 VDC – Max 18 VDC – Nominal 12 VDC

Power Consumption: Max. 2 W

Cable Entry: PG11

Junction Box: ABS Plastic / IP54

Dimensions: 150 × 94.5 × 58 mm

Weight: 250 g

Standards: EN 50545-1:2015; EN 50270
