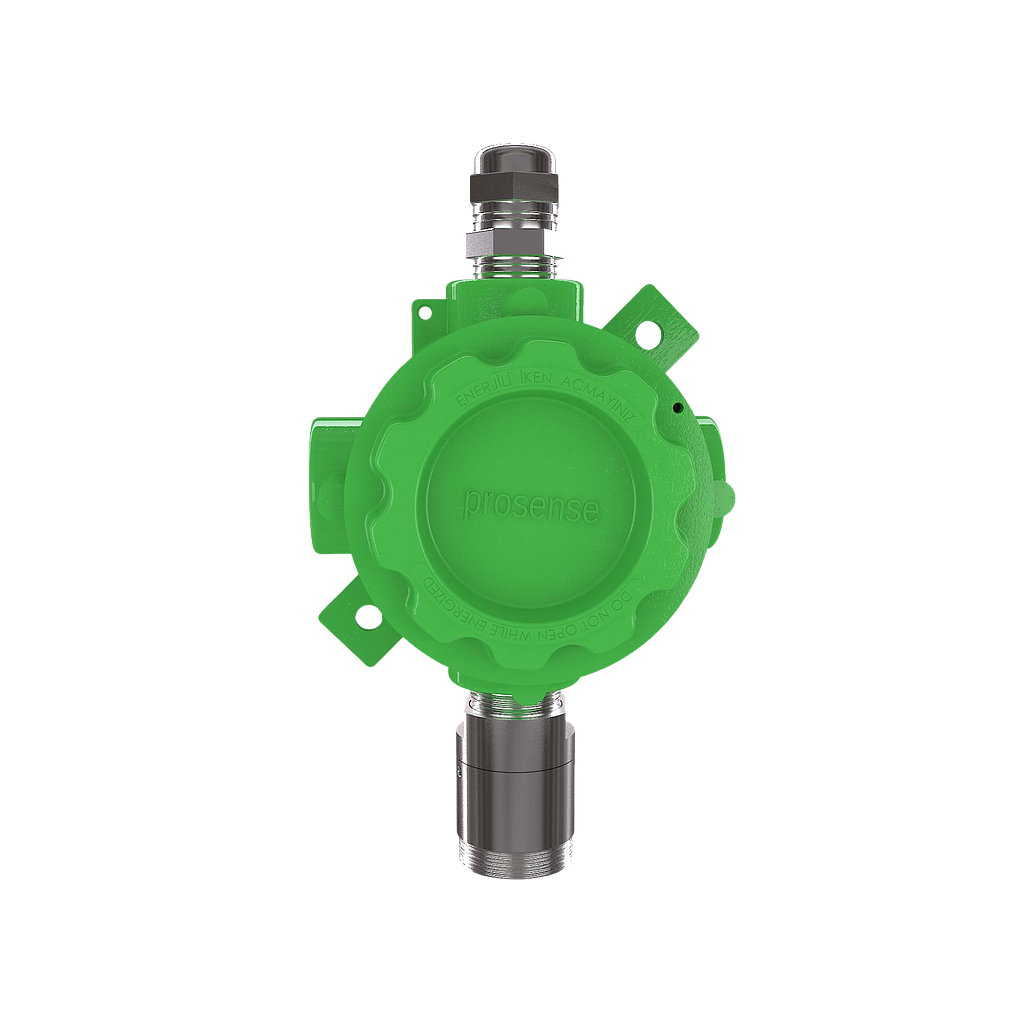

Prosense P-3012PE Gas detector (LPG, 0-100%LEL)

Gas: LPG

Measuring Range: 0-100%LEL

Sensing Element: Catalytic

Output Signal: 4–20mA analog

Sensor Warm-up Time: 60 seconds

Response Time (T90): < 15 seconds

Accuracy: ±2%

Operating Temperature: -40°C ~ +70°C

Operating Humidity: 5 ~ 95% RH (non-condensing)

Input Voltage:

Minimum: 10 VDC

Maximum: 28 VDC

Nominal: 24 VDC

Power Consumption: Max. 4W

Optional Relay Outputs:

2 relay contacts (Alarm1–Fault or Alarm1–Alarm2)

All relays are configurable NO/NC

Cable Entry: 1/2” NPT

Ingress Protection: IP65

Junction Box: Epoxy painted die-cast aluminium

Sensor Head: Nickel-plated brass

Dimensions / Weight: 172.5 × 118.15 × 88 mm / 1150 g

ATEX Marking: II 2G Ex db IIC T4–T5 Gb

Hazardous Area Classification: Zone 1 or Zone 2
