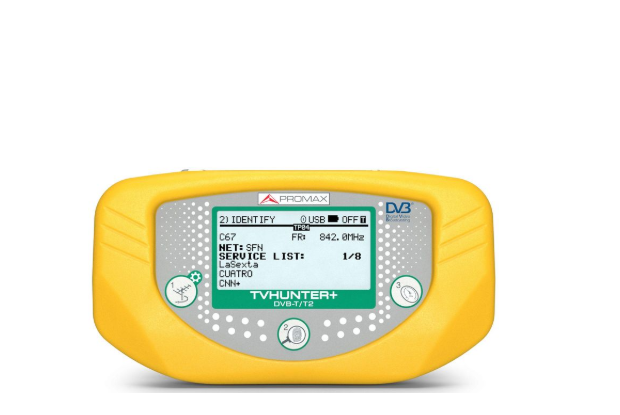

Promax TVHUNTER+ Digital terrestrial TV hunter for DVB-T and DVB-T2

MECHANICAL FEATURES

Dimensions: 180 mm (W) x 95 mm (H) x 50 mm (D)

Weight: 480 g.

TUNING

Frequency range: 170 MHz to 858 MHz (UHF)

Measurement points: 50 maximum

RF INPUT

Impedance :75 Ω

Connector: Universal, including BNC, DIN and F interchangeable adapter

Level range: 40 dBµV to 100 dBµV

Maximum signal level:DC to 100 Hz 30 Vrms

170 MHz to 858 MHz 120 dBµV

DIGITAL SIGNALS MEASUREMENTS

DVB-T (COFDM) MEASUREMENTS

Power: 40 to 100 dBµV

MER :0 to 35 dB

CBER :1E-6 to 1E-1

VBER :1E-8 to 1E-1

Link Margin: In dB (Range depends on signal parameters)

DVB-T SIGNAL PARAMETERS

Carriers: 2k / 8k

Guard Interval: 1/4, 1/8, 1/16, 1/32

Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8

Modulation: QPSK, 16-QAM, 64-QAM

Bandwidth: 6,7 and 8 MHz

Spectral inversion: ON, OFF, (AUTO)

Displayed information: Multiplex name and its first 48 services, if it is detected

Visual indication of DVB-T locked signal

Configuration of test points: By means of USB 2.0 connection to PC. (Cable and software included)

DVB-T2 (COFDM) MEASUREMENTS

Power: 40 to 100 dBµV

MER: 0 to 35 dB

CBER: 1E-6 to 1E-1

LBER: 1E-8 to 1E-1

Link Margin: In dB (Range depends on signal parameters)

DVB-T2 SIGNAL PARAMETERS

Carriers: 1k, 2k, 4k, 8k, 8k+ EXT, 16k, 16k+ EXT, 32k, 32k+ EXT

Guard Interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Bandwidth: 5, 6, 7 and 8 MHz

Spectral Inversion: ON, OFF (AUTO)

Pilot Pattern: PP1-PP8

Code Rate: PLP 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

PLP Constellation: QPSK, 16QAM, 64QAM, 256QAM

PLP Constellation: Rotation ON / OFF (AUTO)

PLP ID: 0-255

EXTERNAL UNITS POWER SUPPLY: Through the RF input connector

Output voltage: 5 V, 12 V, 15 V, 24 V ± 1 V

Maximum external output power: 5 W (2.5 W for +5 V)

BACK-LIGHT DISPLAY: Automatic

POWER SUPPLY

Battery: 7.4 V 2.2 Ah Li-Ion battery

Low battery indication: Acoustic indication and a message on the display

Charger: Built-in. It disconnects the powering when the charging process ends

Autonomy: 6 hours. typically, powering a universal LNB and identifying a signal continuously

Charging time: 90 min. approx. starting from a complete discharge (instrument off), within the

margin of tolerated temperatures

Mains Adapter: 90 - 250 V/50-60 Hz (included), 12 V DC, 20 W

ACCESSORIES: Mains power adapter, F to BNC/DIN/F adapters, Mains cord, Car lighter adapter, TVHUNTER+ carrying suitcase, TVHUNTER + carrying

belt, USB 2.0 connector cable, TVHUNTER+ Quick Reference Guide
