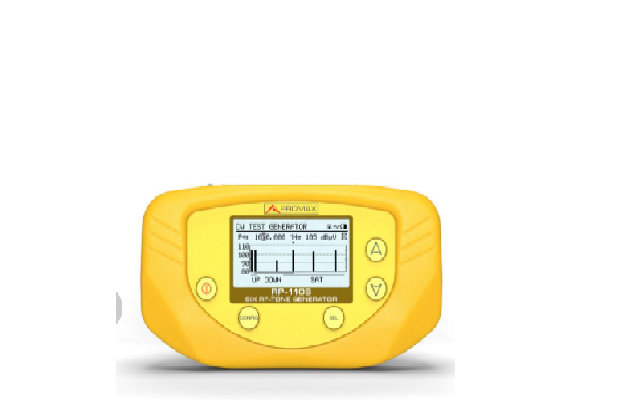

Promax RP-110 Test signal generator for coaxial cable

Manufacturer: Promax

Model:RP-110

Origin: England

Warranty: 12 months

FREQUENCY

Carriers frequency range

P1: 5.00 MHz to 10.00 MHz.

P2: 55.00 MHz to 100.00 MHz.

P3: 460.00 MHz to 540.00 MHz.

P4: 800.00 MHz to 1000.00 MHz.

P5: 1450.00 MHz to 1750.00 MHz.

P6: 1850.00 MHz to 2150.00 MHz.

Resolution: 25 kHz.

Accuracy: ± 50 ppm (at 25 ºC).

CARRIERS LEVEL

Carriers level: 80 to 110 dBμV (selectable in 1dB steps).

Signal level resolution: 1 dB.

Signal level accuracy: ± 2 dB (at 25 °C).

Impedance: 75 Ω.

Flatness in a band: 2 dB.

COMUNICATIONS

USB Interface: For remote control and firmware upgrading.

POWER SUPPLY

Battery: 7,4 V Li-Ion.

Low battery indication: Graphical indicator on the screen: .

Autonomy: More than 5 hours.

Battery charge: Through fast internal charger.

External

Voltage: 12 V DC.

Power: 15 W.

Mains adapter: From 90 V to 250 V, 50-60 Hz (included).

September 2016 23

ENVIRONMENTAL CONDITIONS : Equipment specifications are set in these environmental operating conditions. Operation

outside these specifications are also possible. Please check with us if you have specific

requirements.

Altitude : Up to 2000 metres.

Temperature range: From 5 °C to 40 °C.

Maximum relative humidity : 80 % (up to 31 °C), decreasing lineally up to 50% at 40 °C.

MECHANICAL FEATURES

Dimensions: 180 (W) x 95 (H) x 50 (D) mm.

Weight: 400 g. (including battery and protective bag).

ACCESSORIES INCLUDED

AL-101B: Mains adapter 90 - 250 V AC.

CA-005: Mains cord CEE - 7.

AA-012: Car lighter adapter cable.

AD-055: F/h – BNC/h Adapter.

AD-057: F/h – F/h Adapter.

CC-030: F/F Coaxial Cable.

DC-269: Transport case.

CC-041: USB Cable.

OPTIONAL ACCESORIES

DC-270: Transport suitcase.
