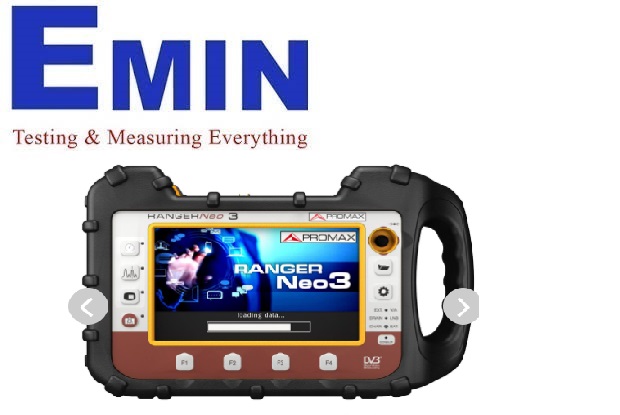

Promax RANGERNeo 3 High class field strength meter and spectrum analyzer

Manufacturer: Promax

Model:RANGERNeo 3

Origin: England

Warranty: 12 months

DIGITAL STANDARDS:DVB-T, DVB-T2, DVB-T2 lite

DVB-T2-MI (Gateway to modulator)

DVB-C, DVB-C2

DVB-S, DVB-S2, DVB-S2 multistream

ISDB-T/Tb

DSS, ACM/VCM/CCM

DAB, DAB+

MPEG-TS

AUDIO CODECS:MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS:MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS:

Universal RF connector 75 Ω

ASI-TS input and output

IPTV input UDP/RTP RJ45 Ethernet 1 Gbps

HDMI output

IP input for remote control

Analogue Video/Audio input

Common Interface module slot

1 pps input

2xUSB for data tranferring and GPS module

SPECTRUM ANALYZER:

Frequency Margin:From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

Measurement range:From 10 - 130 dBµV

Span:Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

Resolution bandwidths:2 kHz (terrestrial)

10, 20, 30, 40, 100, 200 kHz

1 MHz

MEASUREMENT MODE (please refer to STANDARDS section)

Frequency Margin:From 5 - 1000 MHz (Terrestrial)

From 250 - 2350 MHz (Satellite)

DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets

DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin

DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets

PAL, SECAM and NTSC: M, N, B, G, I, D, K and L

FM radio :Level measurement

DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin

DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE:6 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION (via ethernet interface):NetUpdate 4 (free software) + Free and automatic firmware updates

+ User customised channel plans + Measurement reports and screenshots

GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard

DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)

dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)

BATTERY:> 4 h (smart battery)

HARD CASE:Included

OPTIONS:

DAB, DAB+:Included

GPS Coverage Analysis:Included

Advanced DAB/DAB+ analyzer:Available

Advanced FM radio analyzer:Available

Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm:Available

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input:Available

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input:Available
