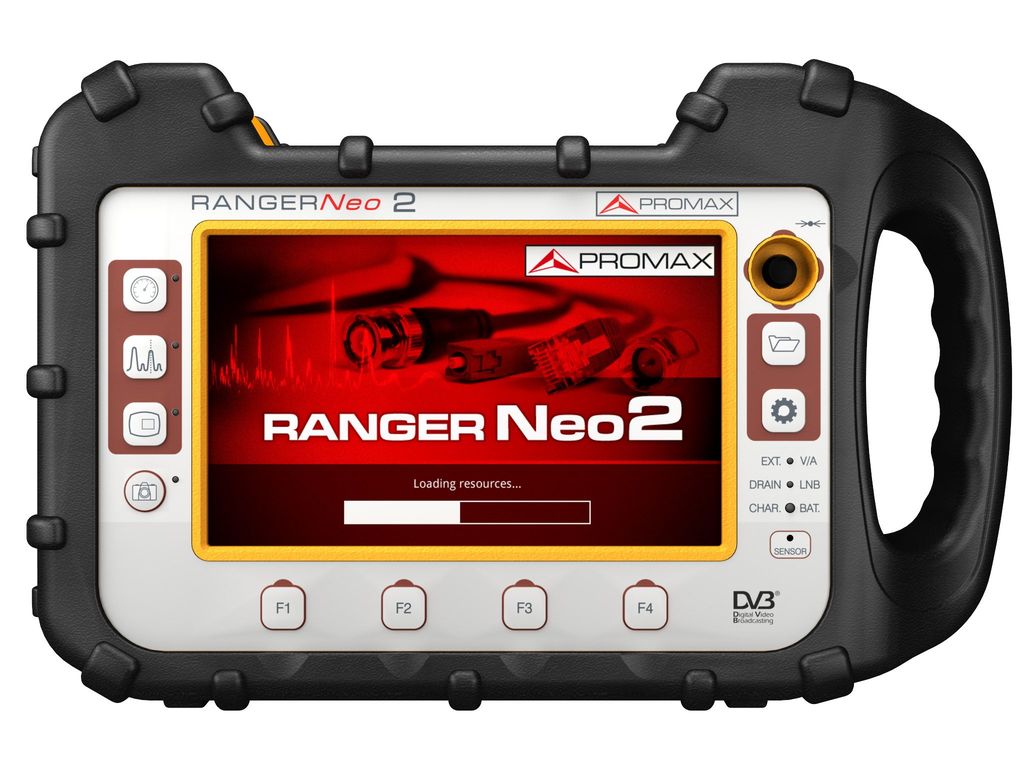

Promax RANGERNeo 2 Professional field strength meter and spectrum analyzer

DIGITAL BROADCAST STANDARDS:

ISDB-T/Tb

QAM Annex B

DVB-C

DVB-S, DVB-S2, DVB-S2 multistream

ISDB-T/Tb

DSS, ACM/VCM/CCM

MPEG-TS

AUDIO CODECS: MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS: MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS:- Universal RF input 75 Ω

- HDMI output

- IP input for remote control

- Analogue Video/Audio input

- 2xUSB (Type-A) for data transfering

FUNCTIONS:Merogram and Spectrogram

Constellation diagram LTE

Dynamic echoes analysis

Audio/Video streaming

SCAN + TILT

StealthID (instant identification of tuning parameters)

PLS (Physical Layer Scrambling)

Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold

4K Frame grabber

FM RDS radio measurements and decoding

Screenshots and Datalogger for measurement reports

Wideband LNB

WiFi 2.4 GHz

OTT

Service Recording

DVB-S2 multistream

Signal monitoring

Field strength

Task planner

TS Recording

TS Analysis

webControl

IPTV multicast

Shoulder Attenuation

Beacon-Flyaways SNG and VSAT

GPS Coverage Analysis (optional

SPECTRUM ANALYZER

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

Measurement range Span : From 10 - 130 dBµV

Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

Resolution bandwidths:2 kHz (terrestrial)

10, 20, 30, 40, 100, 200 kHz

1 MHz

MEASUREMENT MODE (please refer to STANDARDS section)

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

: From 250 - 2350 MHz (Satellite)

DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets

DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin

DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets

PAL, SECAM and NTSC: M, N, B, G, I, D, K and L

FM radio :Level measurement

DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin

DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE: 6 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION (via ethernet interface): NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans+ Measurement reports and screenshots

GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard

DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)

dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)

BATTERY: > 4h(smart battery)

HARD CASE: Included

OPTION:

DAB, DAB+: Available

GPS Coverage Analysis: Available

Advanced DAB/DAB+ analyzer: Available

Advanced FM radio analyzer: Available

Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm: Available

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
