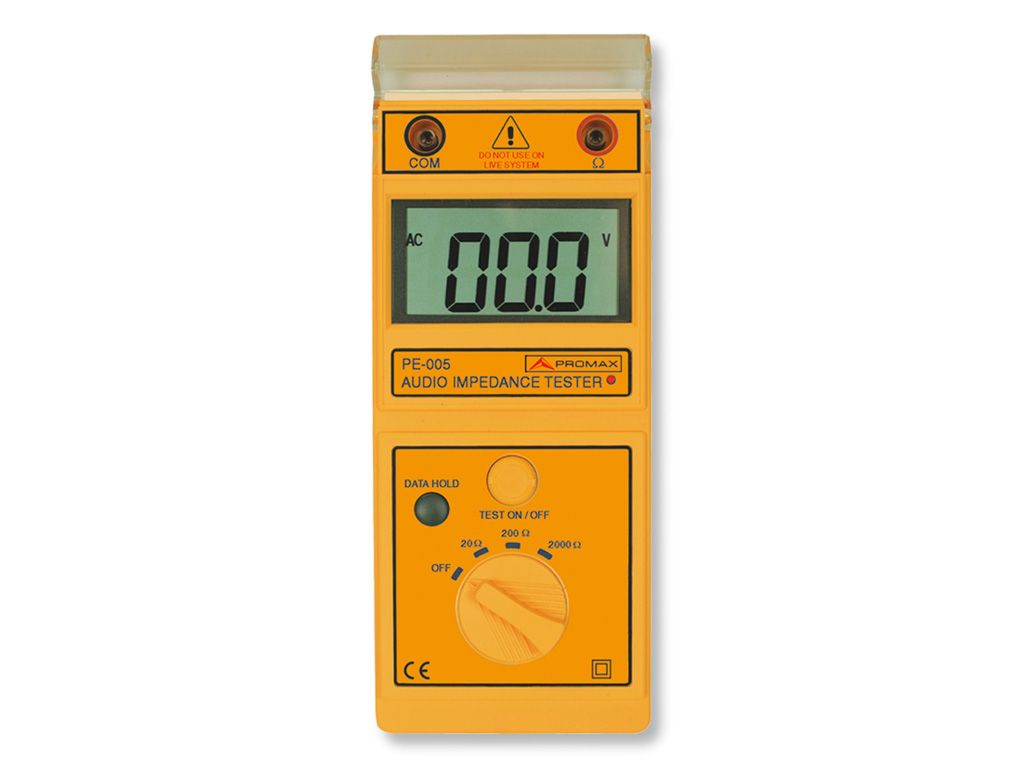

Promax PE-005 Audio Impedance Tester

Measurement range: 20 Ω / 200 Ω / 2000 Ω

Test frequency: 1 kHz

Accuracy

Range: 20 Ω ±2% rdg ± 2 dgt or ± 0.1 W, which is greater.

Range: 200 W / 2000 Ω ±2% rdg ± 2 dgt

Presentation

Display: LCD 3 ½ digit (2000 counts)

Power supply

Batteries: 9 V DC (6 batteries x 1.5V R6 type)

Dimensions: W. 90 x H. 205 x D. 55 (mm.)

Weight: Approx. 550 g (batteries included)

Included accessories:

PP010 Test leads set with safety clamps

User’s manual

Transport suitcase

Datasheet
