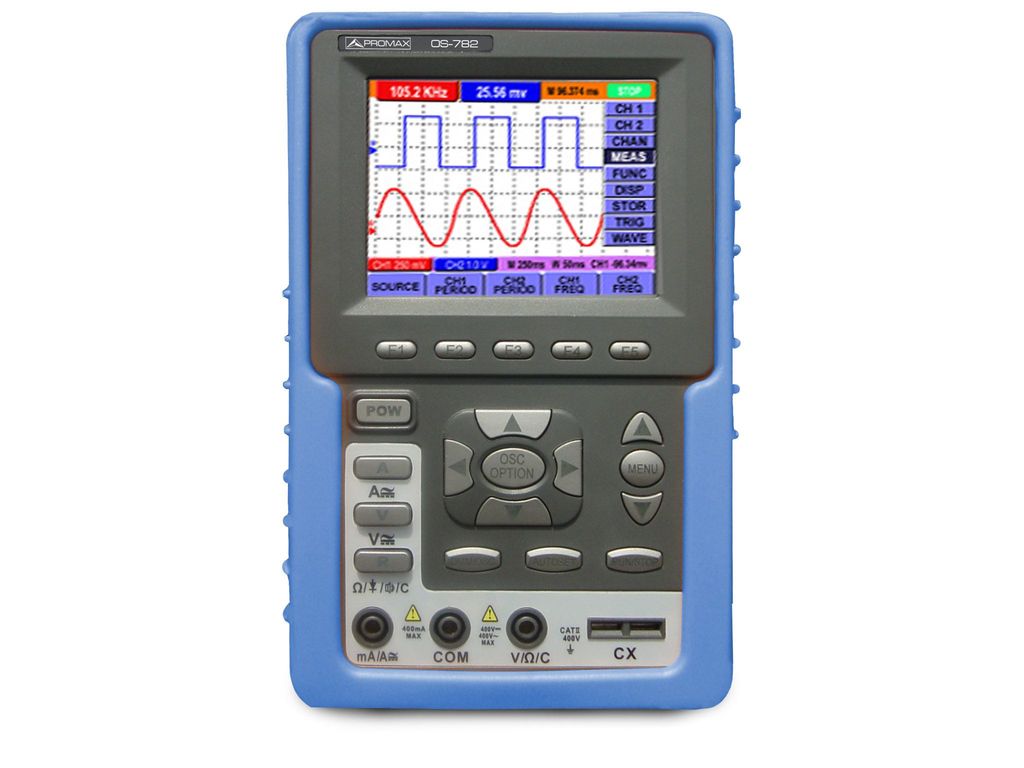

Promax OS-782 Two Channels Poliscope (20 MHz)

Bandwidth: 20 MHz

Sampling rate: 100 MS/s

Trigger: TV and Edge

Trigger modes: Auto, Normal and Single shot

Auto measurements: Frequency, V average, V p-p, Vrms, Cycle

Math functions: CH1-CH2, CH2-CH1, CH1+CH2, CH1xCH2, CH1/CH2

MULTIMETER

Display: 4000 counts (3 - ¾ digits)

Measurements: DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Diode test, Continuity Test

ACCESSORIES: 2 test leads, user manual, AC adapter, software CD, oscilloscope test leads and probes

Dimensions: 180 (H.) x 130 (W.) x 40 (D.) mm

Weight: 350 g (battery included)

200 g (without battery)
