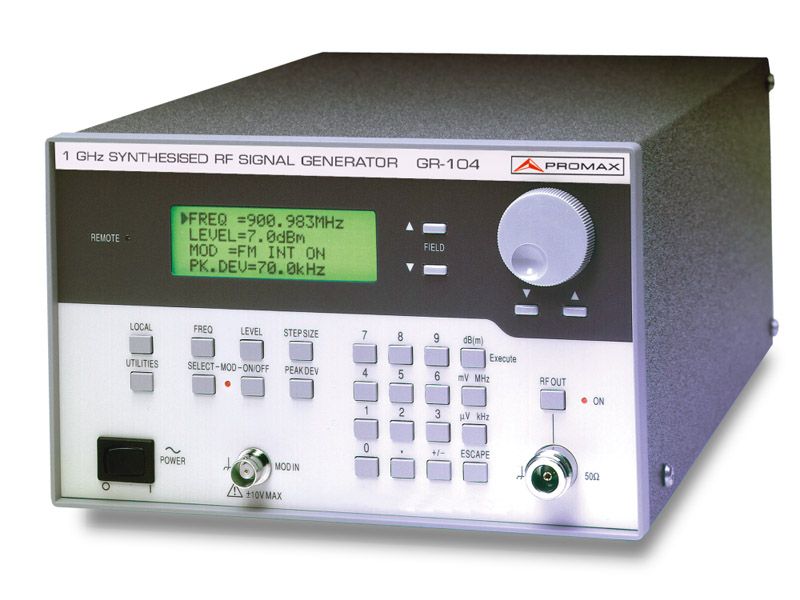

Promax GR-104 RF SIGNAL GENERATOR (1 GHz)

Frequency Range: 10 MHz to 1000 MHz

Resolution: 1 kHz or user-set increments

Accuracy: < ± 1 ppm over temp. range 15 º C to 30 º C, < ± 2 pm over temp. range 5º C to 40 º C

Stability: < 1 ppm/year

Phase Noise: < -110 dBc/Hz at 25 kHz offset, 500 MHz carrier

Residual FM: Equivalent peak derivation in a 300 Hz to 3.4 kHz bandwidth:

17 Hz at 500 MHz carrier

Output level

Legel Range: -127 dBm to + 7 dBm (0,1μV to 500 mV with 50Ω impedance);

Setting resolution: 0,1 dB (0,01 μV to 1 mV) or user-set increments of 0.1 dB to 100 dB

Accuracy: Better than ± 2dBm (GR-104 from 500 MHz to 1 GHz <-70 Bm ± 3 dBm)

Harmonics: Typically <-25 dBc max. - 20 dBc, output level

Output Impedance: 50 Ω

Output Switch: RF OUT on-off switch with LED showing ON status

FM Modulation

Peak Deviation: 0.5 kHz to 100kHz

Setting Resolution: 0.5 kHz

Modulation Frequency: Internal 1kHz, External 300 Hz to 50 kHz

Deviation Accuracy: ±10% of setting

External Modulation:

- Frequency Response: ± 1 dB from 30Hz to 50 kHz relative to 1kHz

- Distortion: <2% total harmonic distortion at 1kHz modulating frequency, and max. deviation

Remote Control: Interfaces RS-232 (standard) and IEE-488 (GPIB) (optional) RS-232 and IEE-488 (GPIB)

Display: 80 character back-lit LCD display

Power Supply

Mains: 240-220 V, 120-110 V, 100 V adjustable internally

Consumption: Max. 30 VA

Mechanical features

Dimensions: W. 212 x H.130 x D. 330 mm

Weight: 4.6 kg
