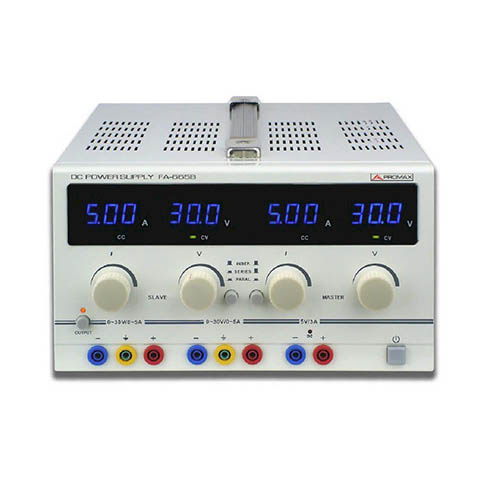

Promax FA-655B ADJUSTABLE DC REGULATED POWER SUPPLY (2x0~30V / 5A, auxiliar 5V/3A)

Input voltage:

110 VAC ~ 127 VAC x 10 % / 60 Hz

220 VAC ~ 240 VAC x 10 % / 50 Hz (switchable)

Output voltage: 2 x 0 to 30 V

Output current: 0 to 5 A

Line regulation:

Two adjustable output:

CV = 1 x 10 -4 + 3 mV

CC = 2 x 10 -3 + 3 mA

Fixed output: 10 mV

Load regulation:

Two adjustable outputs:

CV = 1 x 10-4 + 2 mV

CV = 1 x 10-4 + 5 mV

CC = 2 x 10-3 + 3 mA

CC = 2 x 10-3 + 5 mA

Fixed output: 10 mV

Ripple and noise:

Two adjustable output:

CV = 0.5 mV rms

CV = 1.0 mV rms

CC < 3mA rms

Fixed output: 10 mV rms

Protection: Current-limit

Display accuracy:

Volt-indication: (0.2%Rdg+2 digits), 2.5% Full Scale

Amp-indication: (1.0%Rdg+2 digits), 2.5% Full Scale

Dimensions W. x H. x D.: 260 x 160 x 340

Weight: 10 kg
