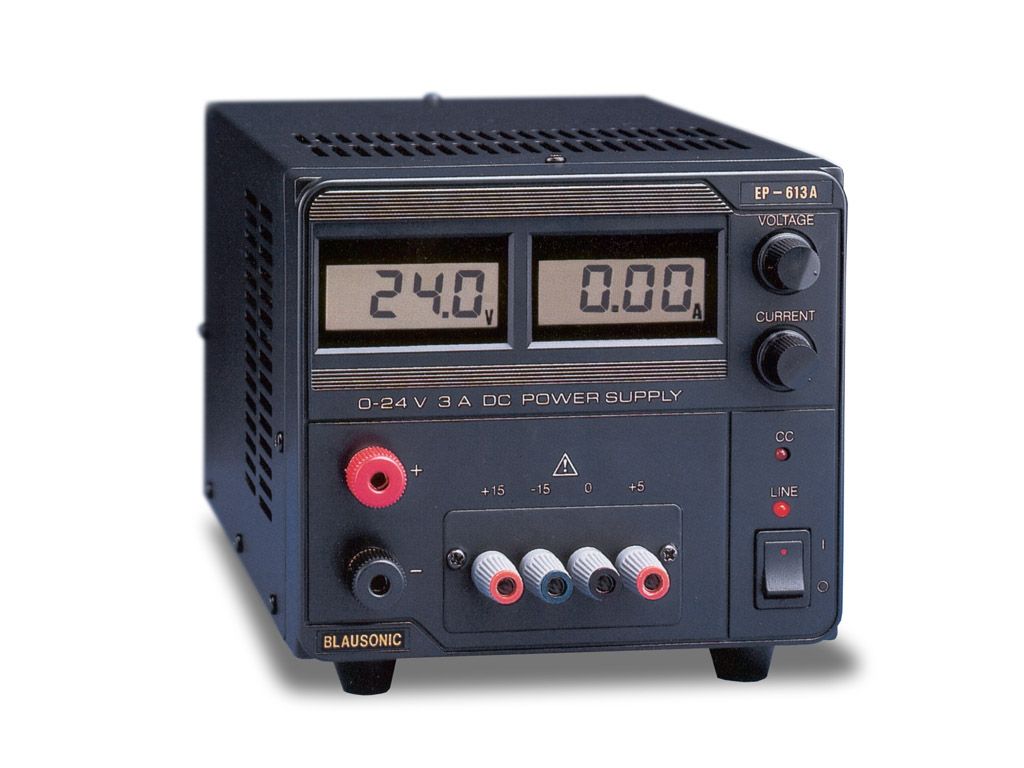

Promax EP-613 Power Supply (0~24V/3A, ±15V, 5V)

Variable output

Voltage: 0 to 24 V

Current: 0 to 3 A

Max. Current control: 0 to 3 A

Max noise and hum: 5 mV rms

Line regulation: 0.05% + 10 mV

Load regulation: 0.05% + 10 mV

Fixed outputs

Output 1: 5 V / 1 A max (0.5 A continuous)

Output 2: +15 V / 0.5 A

Output 3: -15 V / 0.5 A

Power supply

Mains voltage: 230 V ± 5%, 50 Hz

Dimensions: 150 x 145 x 200 mm

Weight: Approx. 4.5 kg
