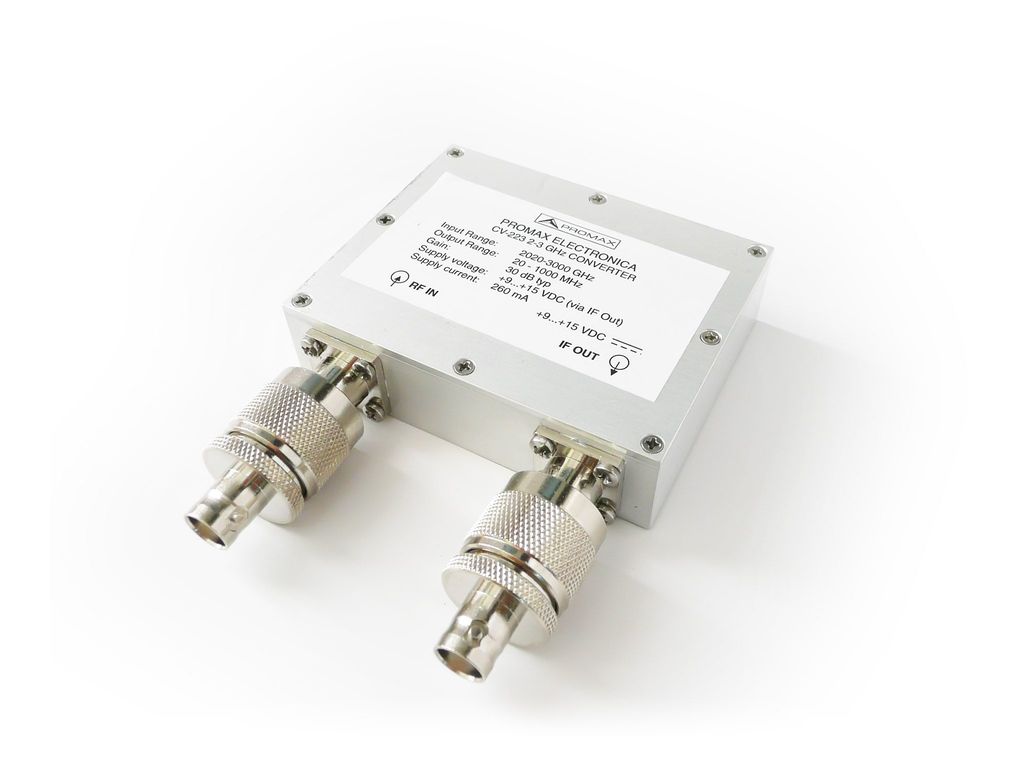

Promax CV-223 2000-3000 MHz to 0.5-1000 MHz Converter for TV Analysers

RF input range: From 2020 to 3000 MHz

RF input connector: N type

RF output Range: From 20 to 1000 MHz

IF output connector: N type

LO Frequency: 2000 MHz

Gain: 30 dB typ.

Supply voltage: +9…+15 V DC via output IF connector

Current consumption: 260 mA

Dimensions: 81 (W) x 105 (H) x 22 (D) mm

Weight: 307 grs.

Included accessories: 1 x BNC / BNC coaxial cable (CC-024)

2 x “N” M / “BNC” F adapter (AD-059)
