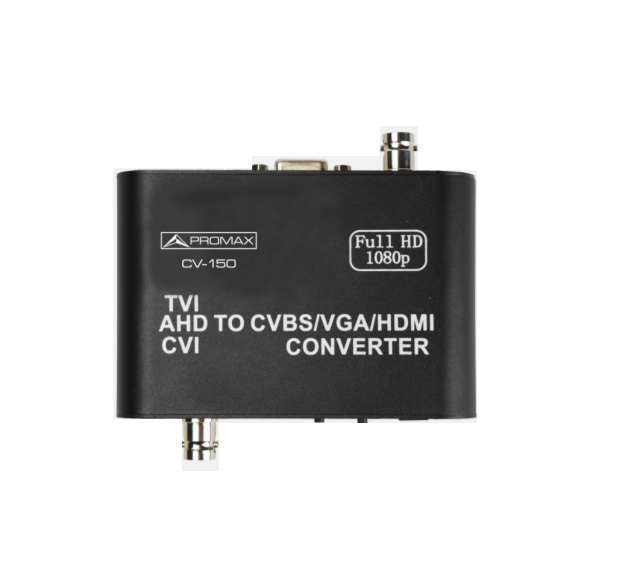

Promax CV-150 Security cameras video adapter for TV Analyzers

- TVI/AHD/CVI signal to HDTV / HDMI up to 1080p

- HDMI output format:720P@50/60Hz,1080P@ 50 / 60Hz

- Default signal output of the converter is HDMI / VGA, it can be switched to VGA / BNC by pushing button

- Video input system: NTSC / PAL(Automatic detection and adaptive)

- Compatible with HDCP, HDMI 1.4

- Provides HD analog signal AHD input interface

- Provides HD digital signal HDMI (720P@60Hz/1080p@60Hz) output interface

- Provides power adapter 5-12 V DC interface

- Support AHD signal 500 m

- Support HDMI 1.4 version and compatible below

- Support audio and image synchronously output

-Support video output smoothly ,without signal loss, screen polarized and screen shaking
