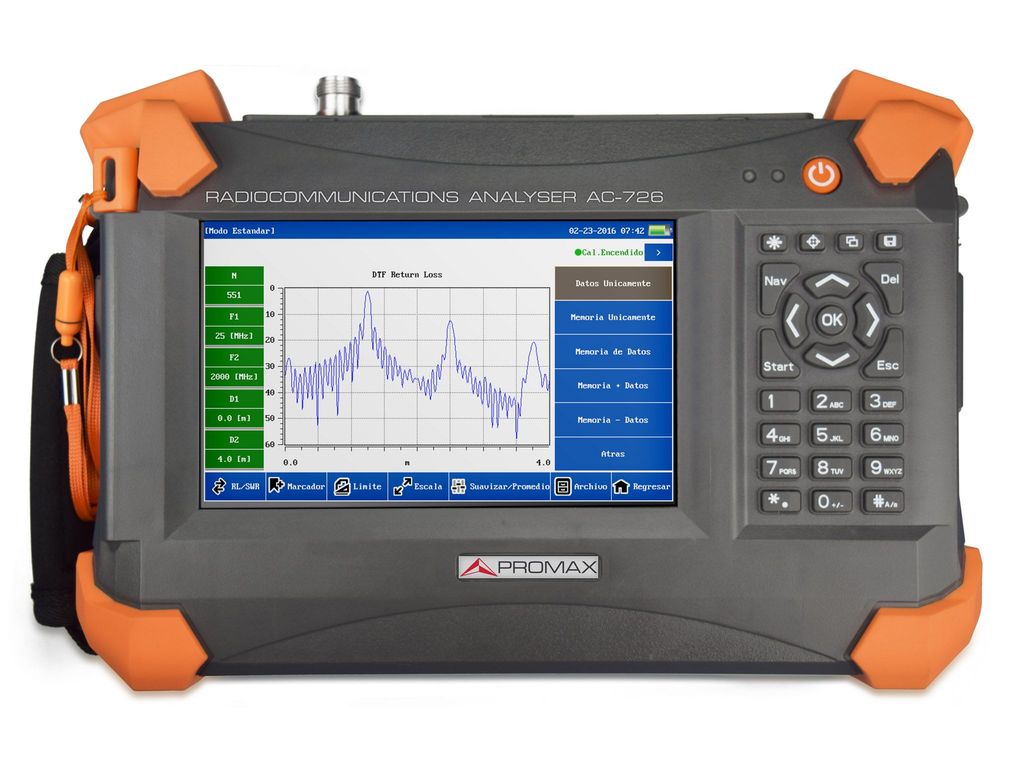

Promax AC-726 2.5 GHz Radiocommunications Generator

Frequency Range: 25 MHz to 4000 MHz

Frequency Resolution: 100 kHz

Frequency Accuracy: ± 25 ppm

Output Power: 0 dBm (typ.)

Measurement Speed: 3.5 ms / point

Data Points: 137, 251, 551, 1103

Anti-jamming Capability

Frequency: -5d Bm

Channel: +17 dBm

Directivity: 42 dB (after calibration)

Return Loss

Return Loss Range: 0 to 60 dB

Return Loss Resolution: 0.01 dB

VSWR

VSWR Range: 1 to 65

VSWR Resolution: 0.01

Cable Loss

Cable Loss Range: 0 to 30 dB

Cable Loss Resolution: 0.01 dB

Distance-to-Fault

Distance-to-Fault Return loss range: 0 to 60 dB

Distance-to-Fault SWR Range: 1 to 65

Measuring Length: 1500 m

Data Points 137,251,551,1103

General Information

Connector: Type N-Type female

Input Impedance: 50 Ω

Display: 7 inch resistor touch screen, resolution 800 x 480

Data Interface:

One USB Host Port

One USB Device Port

One 10 M /100 M Adaptive

LAN Port

Memory Space: >2000 traces

Language: English, Español

Internal Battery: 11.1 V 7800 mah Rechargeable Lithium Battery

External Adapter: 110 to 240 V, 50 to 60 Hz, AC input; 16 V, 3.75 A, DC output

Operating Temp. Range: -10 to +50 °C

Storage Temp. Range: -40 to +70℃

Humidity: 0 to 85% (Non-Condensing)

Weight: 2.5 kg (Suttle)

Dimensions: (L x W x H) 290 (W.) × 175 (L.) × 75 (H.) mm
