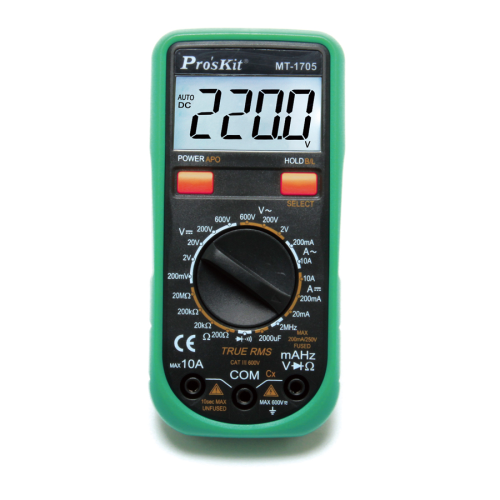

Proskit MT-1705 Compact Digital Multimeter (True-RMS)

Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

DC Voltage(V):200mV/2V/20V/200V±(0.5%+3d)
600V±(1.0%+10d)
AC Voltage (V)True-RMS
40Hz-200Hz and 200kHz-1kHz sine and triangular wave:
2V/200V±(0.8%+5d), 600V±(1.2%+10d)
200Hz-1kHz other wave: 2V/200V/600V±(8.0%+15d)
DC Current(A):20mA/200mA±(1.2%+8d), 10A±(2.0%+5d)
AC Current(A)True-RMS
40Hz-200Hz and 200Hz-1kHz Sine and triangular wave
200mA±(1.5%+15d) 10A±(3.0%+10d)
200Hz-1kHz Other wave 200mA/10A±(8.0%+15d)
Resistance (Ω):200±(0.8%+5d)
20K/200K±(0.8%+3d)20M±(1.0%+25d)
Frequency (Hz)
10/100/1k/10k/100k/2M Hz±(1.0%+10d)
Capacitance (uF):20nF/200nF/2uF±(3.5%+20d)
20uF/200uF/2000uF±(5.0%+10d)
Power source:3V(1.5VAAA*2)
Size (DxWxH)mm: 150x73.5x35mm
