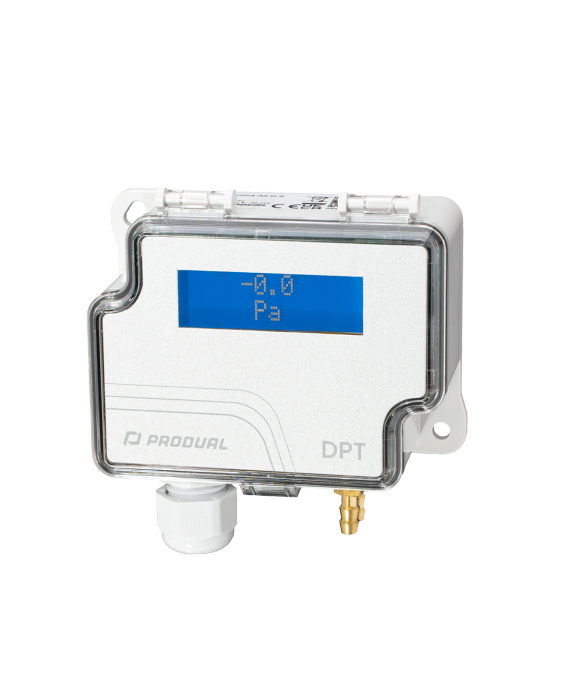

Produal DPT-Priima-AZ-D Differential Pressure Transmitter

Power supply: 24 Vac/dc ±10 %

Power consumption: < 1.2 W

Pressure measurement: * factory setting

Range: ±25 / ±50* / ±100 / ±500 / 0...25 / 0...50 / 0...250 / 0...1000 Pa

Accuracy: 0.4 % ±0.4 Pa (from applied pressure, including: general accuracy, linearity, hysteresis, long term stability, and repetition error)

Temperature compensation: Measurement is temperature compensated when ambient temperature is 0...50 °C.

Response time (T63): *0.4 s / 8.0 s, selectable via jumper (typical, 63 % of the change)

Overpressure

Proof pressure:10 kPa

Burst pressure:30 kPa

Measuring element:MEMS, no flow-through

Measurement units:*Pa

-D models:*Pa, kPa, mbar, inchWC, mmWC, psi

Zeroing automatic: zeroing or manually by pushbutton

Pressure fittings

Type: barbed fitting, male

Size: Ø5.2 mm

Material: brass

Analogue outputs: The device has 1 voltage output connector and 1 current output connector.

Voltage output: * factory setting

Range: *0...10 V / 2...10 V, load > 1 kΩ

Accuracy accuracy after a 30-minute warm-up time: ±0.025 V at 25 °C

Current output

Range 4…20 mA, load 20...500 Ω

Accuracy:

accuracy after a 30-minute warm-up time: typically ±0.04 mA at 25 °C, load 100 Ω

max. ±0.1 mA at 25 °C, load 20...500 Ω

Display (-D models): 2-line, backlit display, 46.0 x 14.5 mm. Shows measured pressure value and measurement unit.

Wiring terminals

Type: tilted screw terminals

Wire: 0.2...1.5 mm2 (24...16 AWG)

Tightening torque: 0.4 Nm

Operating conditions

Ambient temperature: -5...50 °C

Storage temperature: -40...70 °C

Ambient humidity: 0...95 %rH (non-condensing)

Compatible media: dry air or non-aggressive gases

Housing

Protection class: IP54, cable downwards

Cable gland: M16

Materials: ABS and PC plastic (housing), silicone (tubing)

Mounting: 2 x Ø4.3 mm screw holes, one slotted

Dimensions (w x h x d): 90 x 95 x 36 mm

Weight: 140 g
