Manufacturer: Prodigit
Made in Taiwan

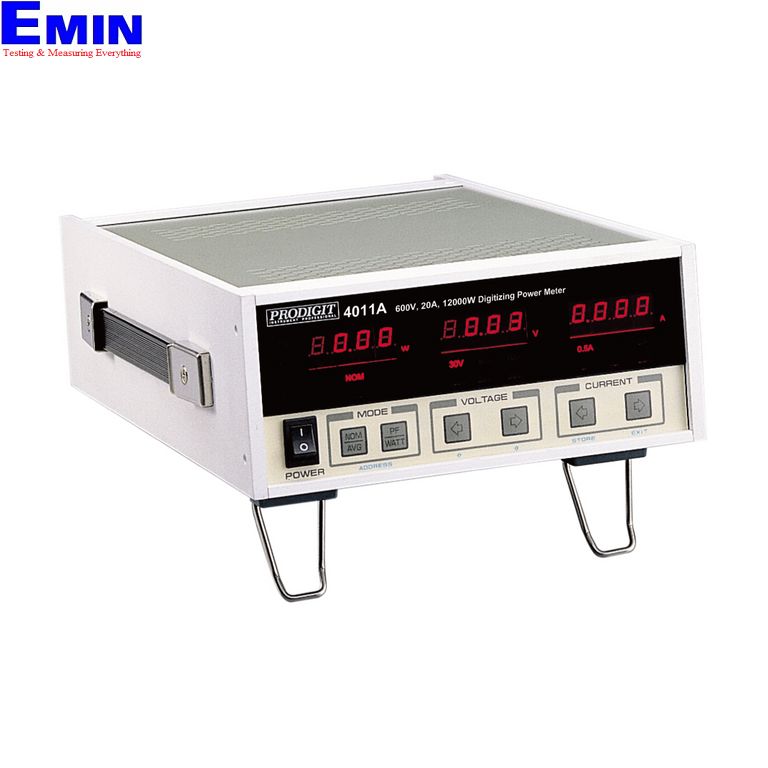

Model: 4011A
Warrantly: 12 months
Voltage:
Ranges, Auto-ranging up: 60, 120, 200, 300, 400, 600V
Impedance: 1MΩ on all Ranges
Maximum Allowable Input: 600Vrms AC, 900V DC or peak AC
Max. allowable Input(for 1 min): 2000Vpeak
Current:
Ranges, Auto-ranging up: 0.5, 1, 2, 5, 10, 20A
Impedance: 0.11Ω on 0.5, 1, 2A Range/0.01Ω on 5, 10, 20A Range
Maximum Allowable Input: 20Arms AC (40A peak), 20A DC
Max. allowable Input(for 1 min): 40A
AC power: 115/230 Vac
Weight: 4.5kg
Dimension: 221(W) x 88(H) x 325(D)mm
Options: 1M GPIB Cable, 2M GPIB Cable
