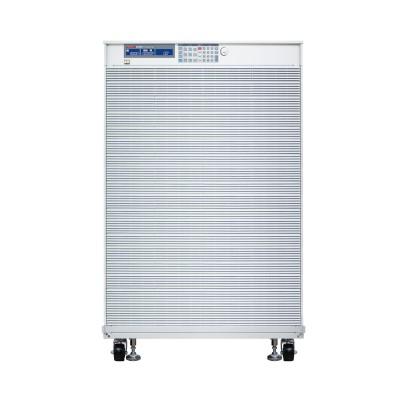

Prodigit 36250A Compact High Power DC Electronic Load(50KW,21A/210A,600V)

Power: 50KW
Current: 0~21A/0~210A
Voltage: 0~600V
Min.Operation Voltage: 10V@210A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~21A/0~210A
Resolution: 0.35mA/3.5mA
Accuracy: ±0.1%
CR mode:
Range: 8571~2.857Ω/2.857~0.0286Ω
Resolution: 5.83uS/47.7uΩ
Accuracy: ±0.2%
CV mode:
Range: 600V
Resolution: 10mV
Accuracy: ±0.05%
CP mode:
Range: 5KW/50KW
Resolution: 0.08W/0.8W
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 60V/60~600V, ±0.025%
Current : 0 ~ 21A/21~210A, ±0.1%
Power : 0~5KW/50KW, ±0.125%
Short circuit current: 210A
Dimension (HxWxD): 1353 x 853 x 766 mm
Weight: 510 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
