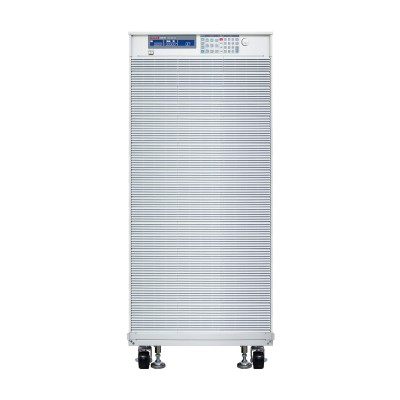

Prodigit 34340A Compact High Power DC Electronic Load(40KW,400A,1000V)

Power: 40KW
Current: 0~40A/0~400A
Voltage: 0~1000V
Min.Operation Voltage: 10V@400A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 104%
Over Voltage Protection (OVP): 104%
Over Temp Protection (OTP): Yes
CC mode:
Range: 40A/400A
Resolution: 0.64mA/6.4mA
Accuracy: ±0.1%
CR mode:
Range: 3000~2.5Ω/2.5~0.0252Ω
Resolution: 6.66uS/0.042mΩ
Accuracy: ±0.2%
CV mode:
Range: 10~1000V
Resolution: 16mV
Accuracy: ±0.05%
CP mode:
Range: 4000W/40000W
Resolution: 64mW/640mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 100V/100~1000V, ±0.025%
Current : 0 ~ 40A/40~400A, ±0.1%
Power : 4000W/40000W, ±0.125%
Short circuit current: 400A
Dimension (HxWxD): 1509 x 647 x 766 mm
Weight: 430 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
