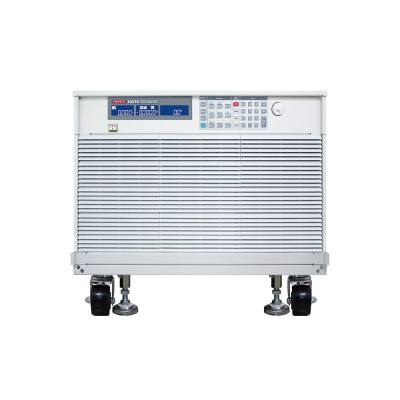

Prodigit 34310A Compact High Power DC Electronic Load (10KW,100A,1000V)

Power: 10KW
Current: 0~10A/0~100A
Voltage: 0~1000V
Min.Operation Voltage: 20V@100A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 104%
Over Voltage Protection (OVP): 104%
Over Temp Protection (OTP): Yes
CC mode:
Range: 10A/100A
Resolution: 0.16mA/1.6mA
Accuracy: ±0.1%
CR mode:
Range: 10~12000Ω/0.2004~10Ω
Resolution: 1.666uS/0.167mΩ
Accuracy: ±0.2%
CV mode:
Range: 20~1000V
Resolution: 16mV
Accuracy: ±0.05%
CP mode:
Range: 1000W/10000W
Resolution: 16mW/160mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 100V/100~1000V, ±0.025%
Current : 0 ~ 10A/10~100A, ±0.1%
Power : 1000W/10000W, ±0.125%
Short circuit current: 100A
Dimension (HxWxD): 573 x 647 x 766 mm
Weight: 130 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
