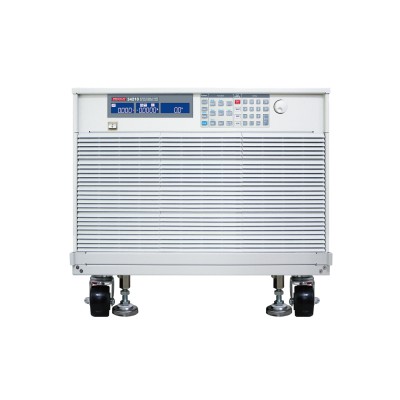

Prodigit 34210A Compact High Power DC Electronic Load (10KW,32A/320A,600V)

Power: 10KW
Current: 0~32A/0~320A
Voltage: 0~600V
Min.Operation Voltage: 10V@320A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~32A/0~320A
Resolution: 0.534mA/5.34mA
Accuracy: ±0.1%
CR mode:
Range: 1.875~12500Ω/0.0192~1.875Ω
Resolution: 0.0088mS/0.032mΩ
Accuracy: ±0.2%
CV mode:
Range: 600V
Resolution: 10mV
Accuracy: ±0.05%
CP mode:
Range: 1000W/10000W
Resolution: 16.7mW/167mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 60V/60~600V, ±0.025%
Current : 0 ~ 32A/32~320A, ±0.1%
Power : 1000W/10000W, ±0.125%
Short circuit current: 320A
Dimension (HxWxD): 573 x 647 x 766 mm
Weight: 130 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
