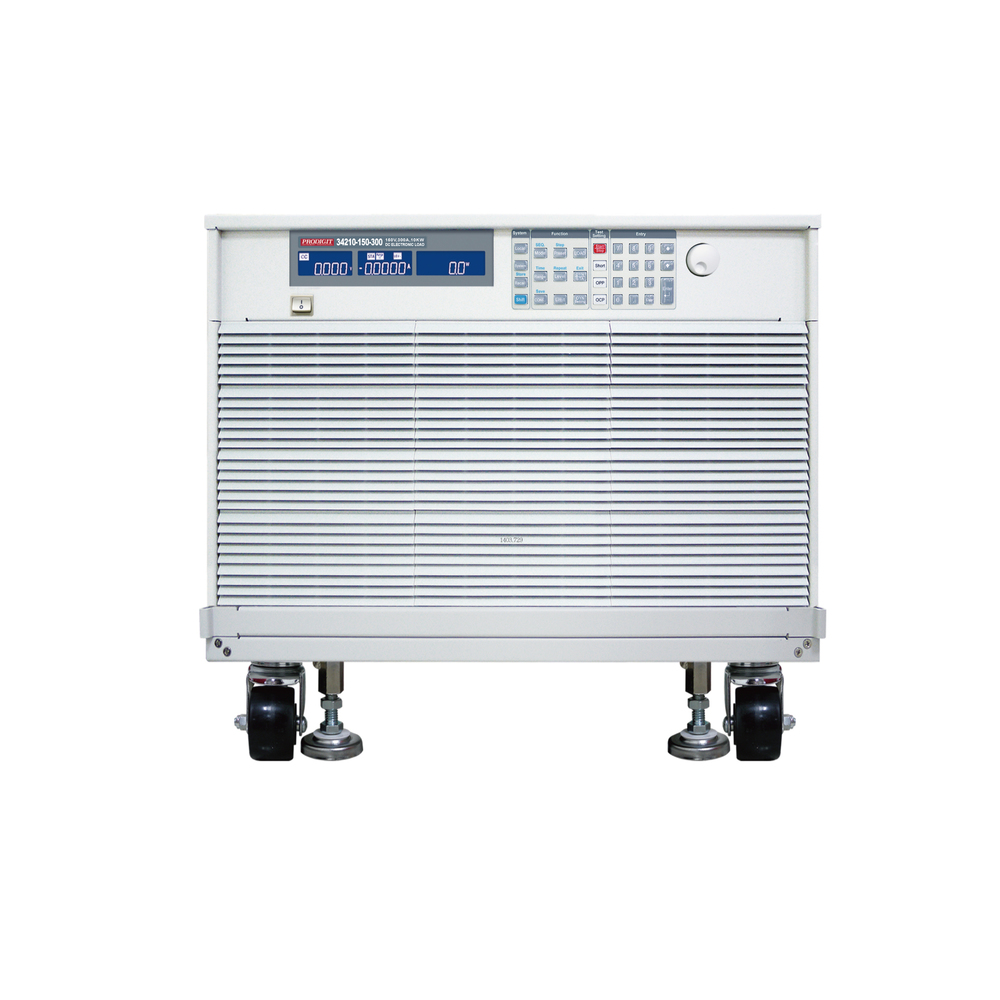

PRODIGIT 34210-150-300 Compact High Power DC Electronic Load (150V, 300A, 10KW)

Power: 10KW

Current: 0~30A/0~300A

Voltage: 0~150V

Min.Operation Voltage: 50V at 300A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~30A/0~300A

Resolution: 0.5mA/5mA

Accuracy: 0.1% setting + 0.2% range

CR mode:

Range: 3000-0.5Ω/0.5-0.0333Ω

Resolution: 33.33uS/9uΩ

Accuracy: ±0.2%

CV mode:

Range: 150V

Resolution: 2.5mV

Accuracy: ±0.05%

CP mode:

Range: 1000W/10000W

Resolution: 16.7mW /167mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 15V/15~150V, ±0.025%

Current : 0 ~ 30A/30~300A, ±0.1%

Power : 0 ~ 1000W/10KW, ±0.65%

Short circuit current: 300A

Dimension (HxWxD): 577 x 647 x 766 mm

Weight: 130 kg

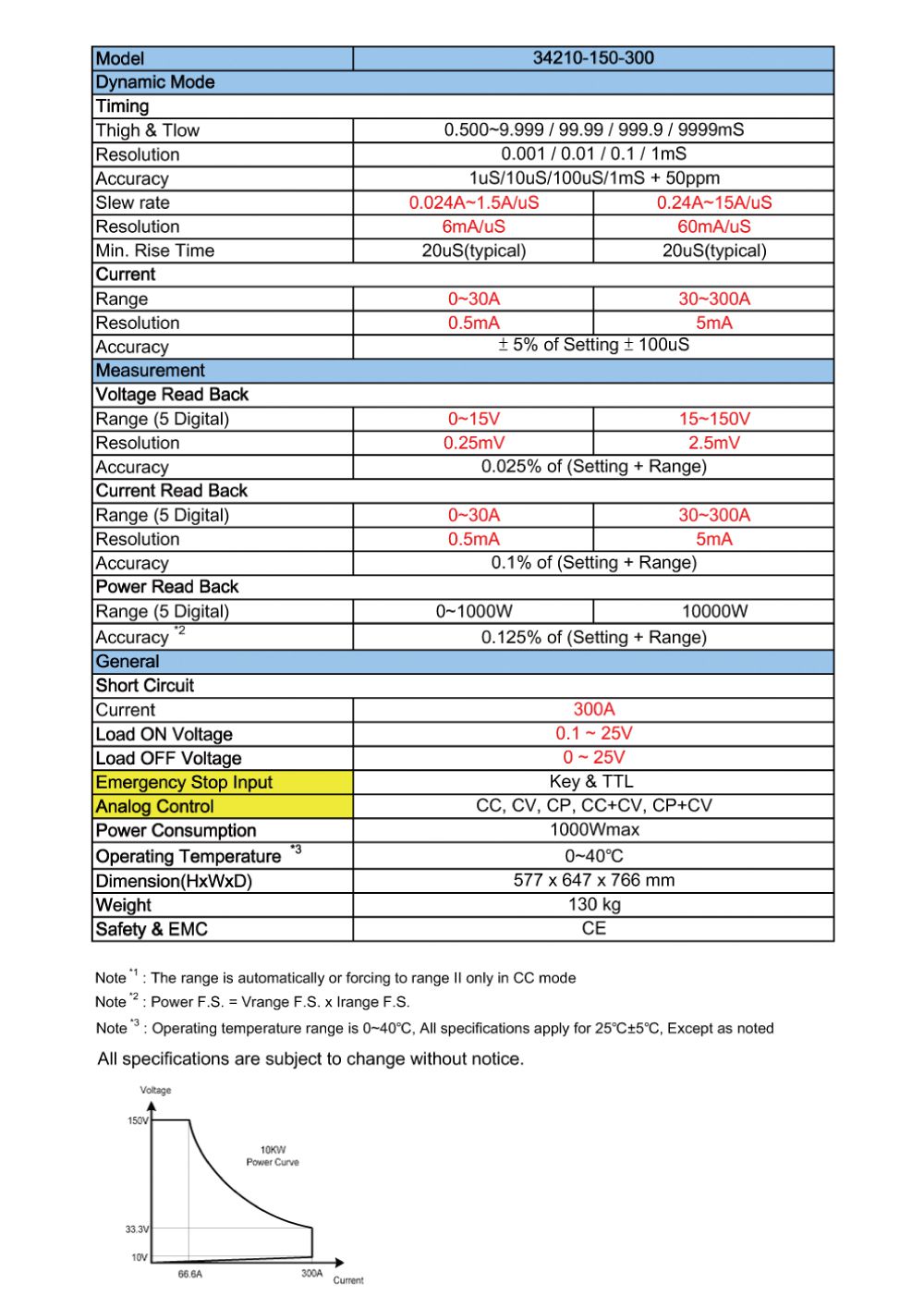

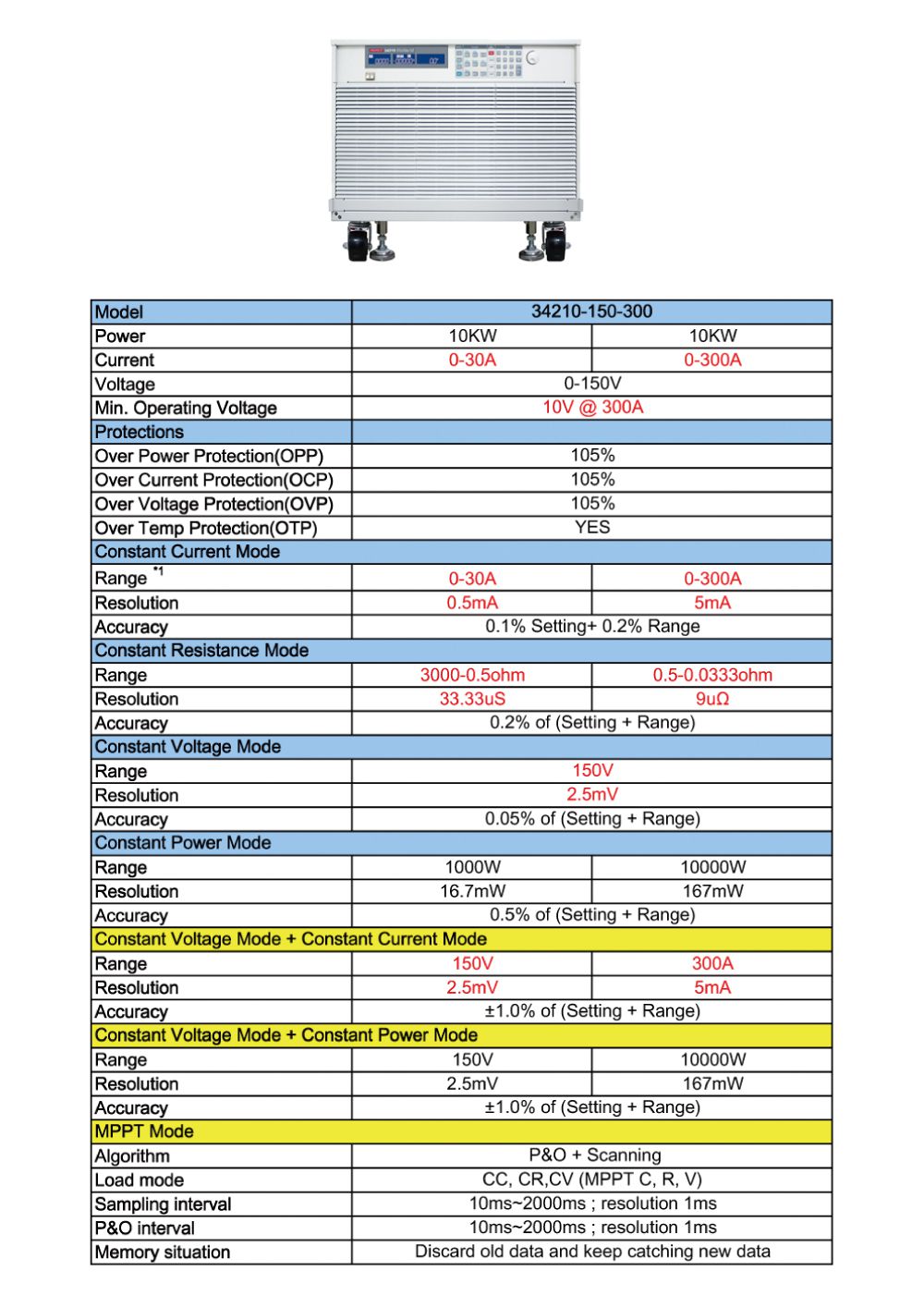

Datasheet
