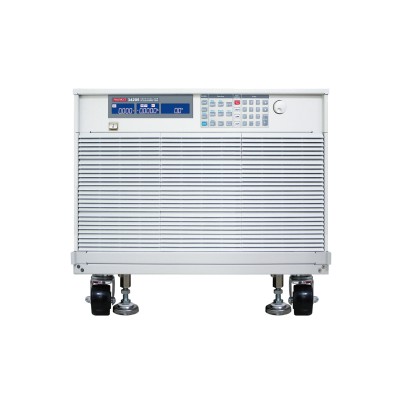

Prodigit 34205A Compact High Power DC Electronic Load (5KW,16A/160A,600V)

Power: 5KW
Current: 0~16A/0~160A
Voltage: 0~600V
Min.Operation Voltage: 10V@160A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~16A/0~160A
Resolution: 0.267mA/2.67mA
Accuracy: ±0.1%
CR mode:
Range: 3.75~15000Ω/0.0378~3.75Ω
Resolution: 4.4uS/63uΩ
Accuracy: ±0.2%
CV mode:
Range: 600V
Resolution: 10mV
Accuracy: ±0.05%
CP mode:
Range: 500W/5000W
Resolution: 8.334mW/83.34mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 60V/60~600V, ±0.025%
Current : 0 ~ 16A/16~160A, ±0.1%
Power : 0~500W/5000W, ±0.125%
Short circuit current: 160A
Dimension (HxWxD): 573 x 647 x 766 mm
Weight: 100 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
