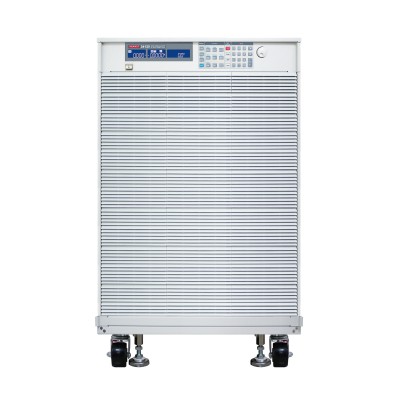

Prodigit 34125A Compact High Power DC Electronic Load (25KW,1000A,60V)

Power: 25KW
Current: 0~100A/0~1000A
Voltage: 0~60V
Min.Operation Voltage: 0.1V@100A/0.7V@1000A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~100A/0~1000A
Resolution: 1.667mA/16.67mA
Accuracy: ±0.1%
CR mode:
Range: 0.06~3600Ω/0.001~0.06Ω
Resolution: 277uS/0.001mΩ
Accuracy: ±0.2%
CV mode:
Range: 60V
Resolution: 1mV
Accuracy: ±0.05%
CP mode:
Range: 2500W/25000W
Resolution: 41.7mW/417mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 6V/6~60V, ±0.025%
Current : 0 ~ 100A/100~1000A, ±0.1%
Power : 2500W/25000W, ±0.125%
Short circuit current: 1000A
Dimension (HxWxD): 1041 x 647 x 766 mm
Weight: 280 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
