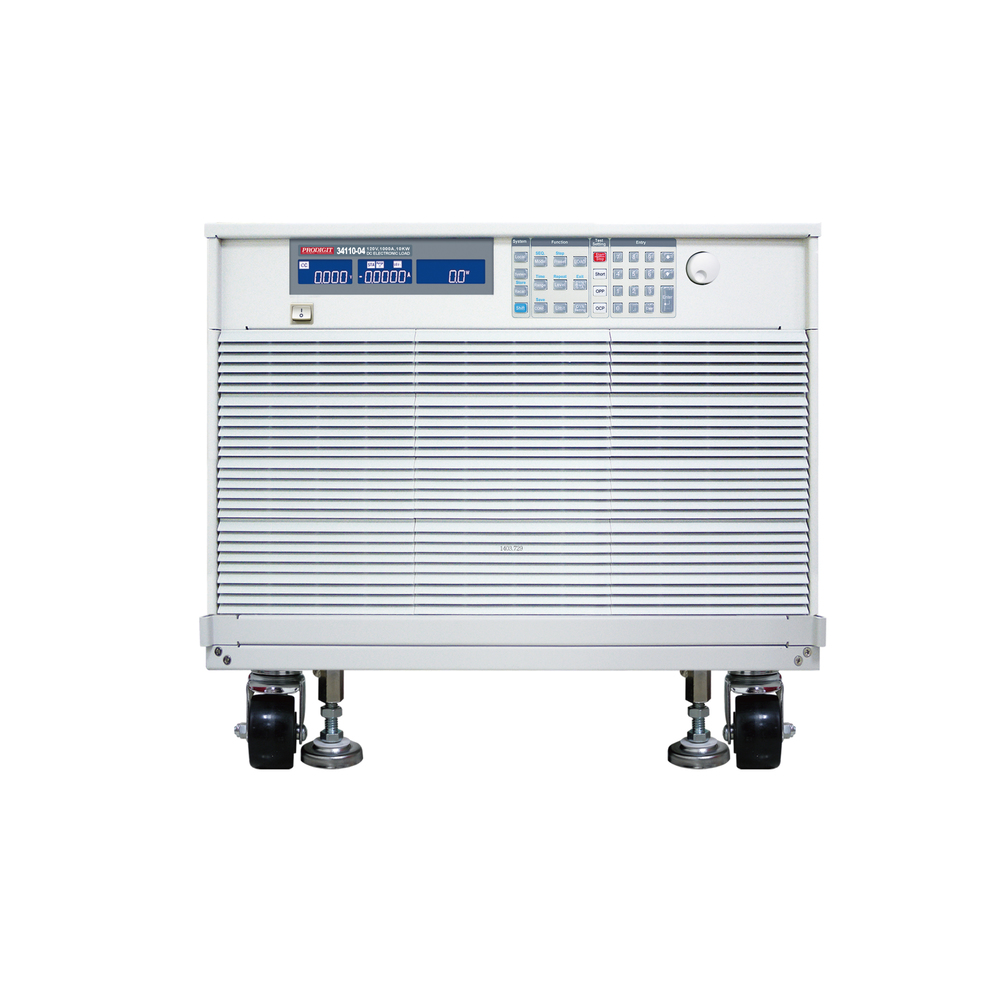

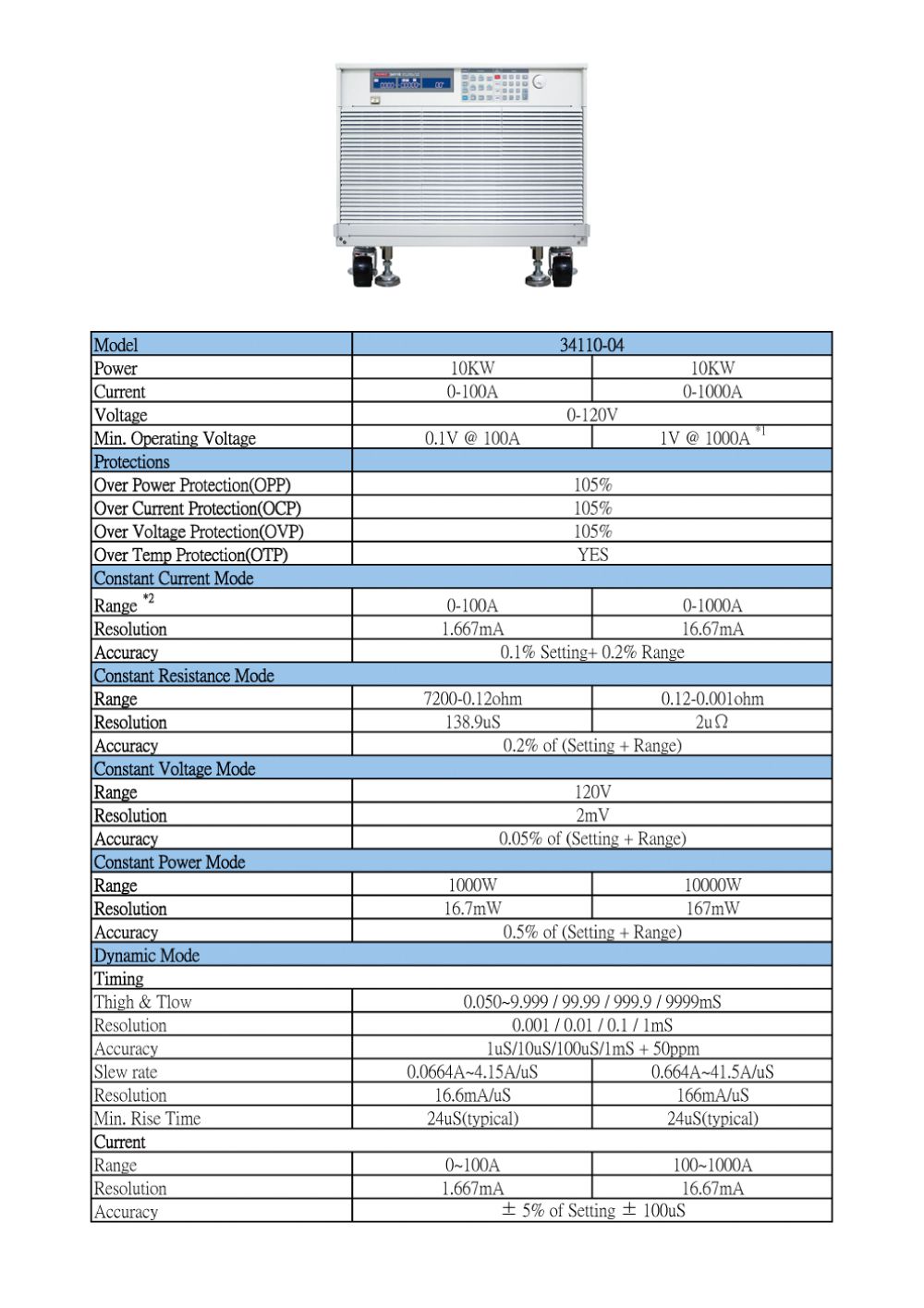

PRODIGIT 34110-04 Compact High Power DC Electronic Load (120V, 1000A, 10KW)

Power: 10KW

Current: 0~100A/0~1000A

Voltage: 0~120V

Min.Operation Voltage: 0.1V at 100A/1V at 1000A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~100A/0~1000A

Resolution: 1.667mA/16.67mA

Accuracy: ±0.1%

CR mode:

Range: 7200-0.12Ω/0.12-0.001Ω

Resolution: 138.9uS/2uΩ

Accuracy: ±0.2%

CV mode:

Range: 120V

Resolution: 2mV

Accuracy: ±0.05%

CP mode:

Range: 1000W/10000W

Resolution: 16.7mA/167mA

Accuracy: ±0.5%

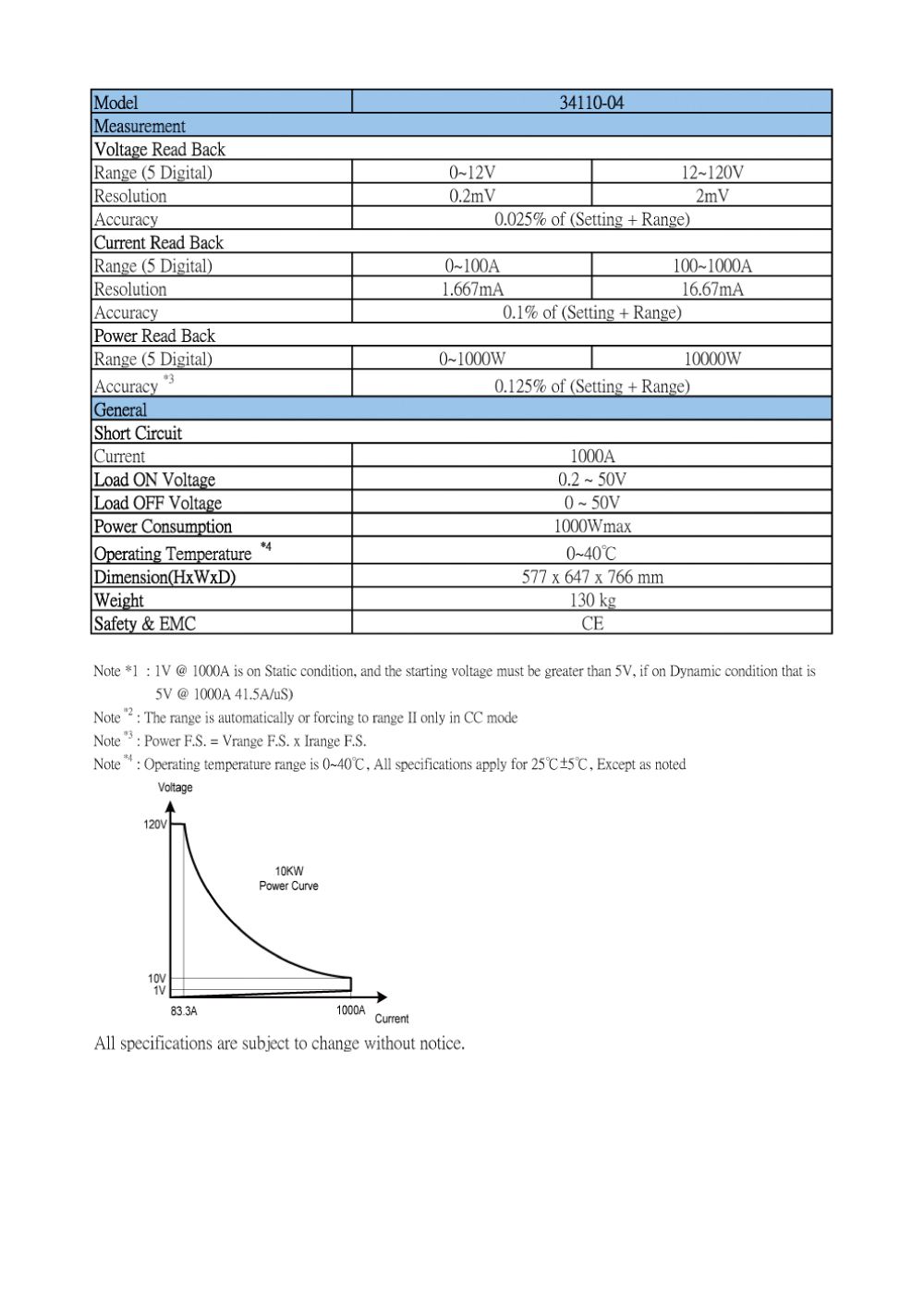

Measurement mode (Load):

Voltage: 0 ~ 12V/12~120V, ±0.025%

Current : 0 ~ 100A/100~1000A, ±0.1%

Power : 0 ~ 1000W/10000W, ±0.125%

Short circuit current: 1000A

Dimension (HxWxD): 577 x 647 x 766 mm

Weight: 130 kg
