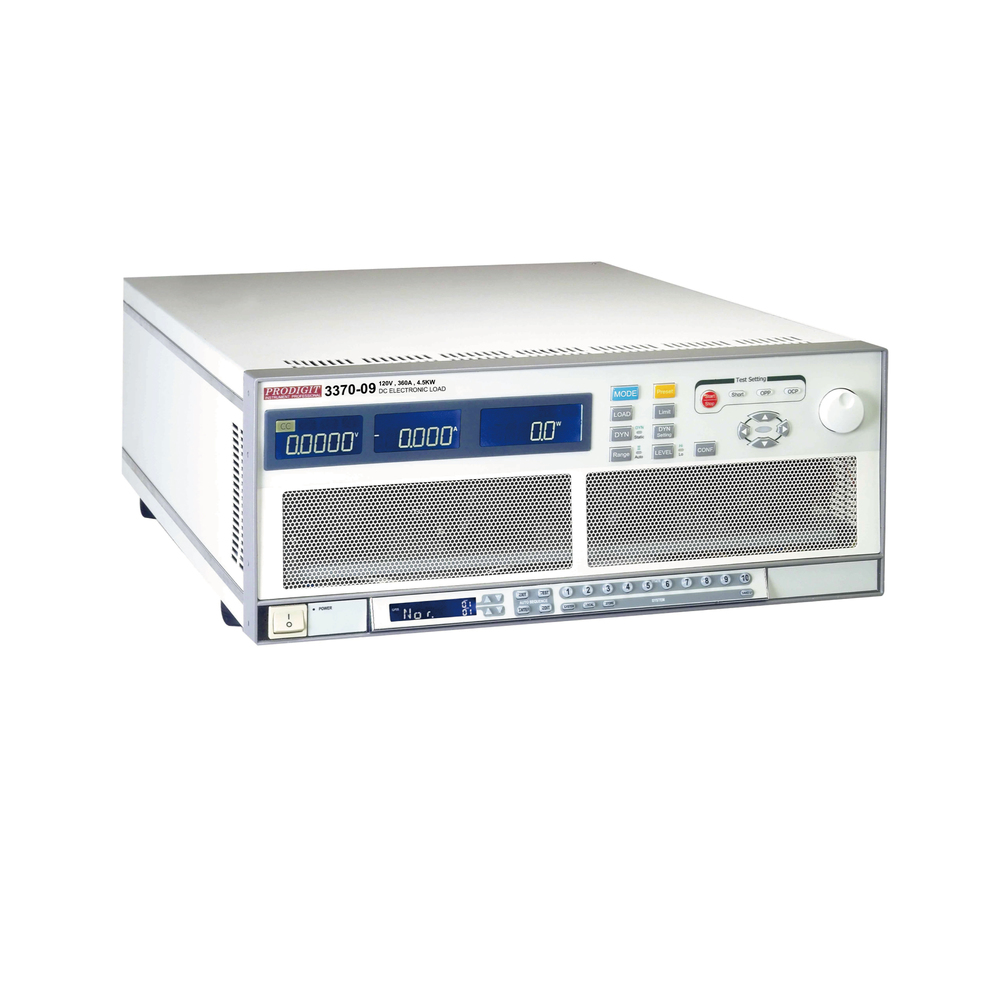

PRODIGIT 3370-09 Compact High Power DC Electronic Load (120V, 360A, 4.5KW)

Power: 4.5KW

Current: 0~36A/0~360A

Voltage: 0~120V

Min.Operation Voltage: 0.2V at 360A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~36A/0~360A

Resolution: 0.6mA/6mA

Accuracy: ±0.1%

CR mode:

Range: 0.0055-0.3333Ω/0.3333-20000Ω

Resolution: 0.0083Ω/0.0333mS

Accuracy: ±0.2%

CV mode:

Range: 0~12V/12~120V

Resolution: 0.2mV/2mV

Accuracy: ±0.05%

CP mode:

Range: 450W/4500W

Resolution: 7.5mW/75mW

Accuracy: ±0.05%

Measurement mode (Load):

Voltage: 0 ~ 12V/12~120V, ±0.025%

Current : 0 ~ 36A/36~360A, ±0.1%

Power : 0 ~ 450W/4500W, ±0.125%

Short circuit current: 360A

Dimension (HxWxD): 177 x 440 x 750 mm

Weight: 45 kg
