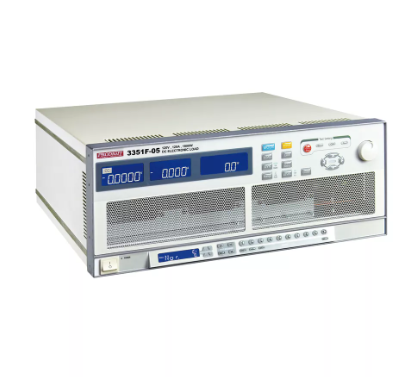

PRODIGIT 3351F-05-G High Power DC Electronic Load (order no 3351F-05 bao gồm GPIB, 120V , 120A , 1800W)
ManufacturerPRODIGIT(View more products from this manufacturer)
Model3351F-05-G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Input Ratings
Power (Watt): 1800 W
Curent (Ampere): 120 A
Voltage (Volt): 120V
Protections
Over Power Protection (OPP): 1890 W
Over Current Protection (OCP): 126 A
Over Voltage Protection (OVP): 126 V
Over Temp. Protection (OTP): 85 °C
CC mode/CR mode/CV mode/CP mode
Load ON Voltage: 0-50V, ±1% of (Setting + range)
Load OFF Voltage: 0-50V, ±0.025% of (Setting + range)
Imonitor (Isolated): 12A/V
Maximum Short Resistance: 0.00833 Ω
Weight: 23.6 kgs/EA
Dimension: 483Wx177Hx445D mm
