Power input: 300VA
Current input: 4Arms
Voltage input: 300Vrms
Display: V, A, W, VA
Option mainframe:
- 3302C: single channel mainframe
- 3302C-01: single channel mainframe; GPIB
- 3300C: four channel mainframe
- 3300C-01: four channel mainframe ; GPIB
Mainframe: 3302C, 3302C-01
Mainframe: 3300C, 3300C-01
Feature
- Voltage, Current Watt and VA display
- CC, Linear CC, CR and Crest Factor mode
- Can be configured in 3302C or 3300C series Mainframe
- Power Factor (PF) adjustable: 1, 0.85~ -0.85
- Threshold Upper/Lower limit capability
- Protections against V, I, W, and ℃.
- Dual 4 1/2 Meter Display for Voltage, Current, Watt and VA
- Suitable for Sine, Square, Step wave
Description

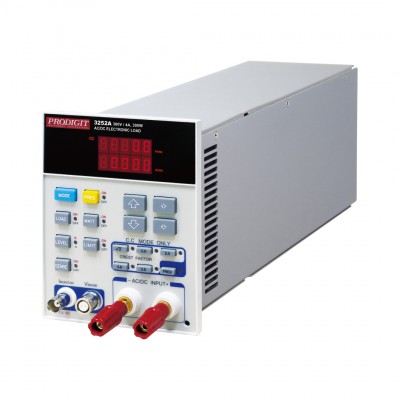

- The 3250 series AC&DC Load Module is suitable for Sine, Square, Step wave testing which provides an idea testing solution for UPS, AVR, D/A inverter, especially for step or square waveform U.U.T.
- The 3250 series Module has it own control and display panel, and with 5 states Store / Recall memory which provides load set-up more efficiently. The 3250 Series combined with 3302C or 3300C mainframe is ideal for production. Quality control and Incoming Inspection; providing 5 programmable front panel memory locations and GO/NG test function capabilities.
- Adjustable power factor setting (PF, Range: 1, 0.85~ -0.85 ) extends the simulation of test environment.
- Built-in GO/NG meter check function offers brief test result diagnosis for production, QC test throughput.
- 3250 Series are suitable for AC/DC, DC/DC, DC/AC testing, UPS output loading test, DC, 40~70Hz Power Transformer, and can be parallel more units for higher power, R&D, QC, Production testing and ATE System application
