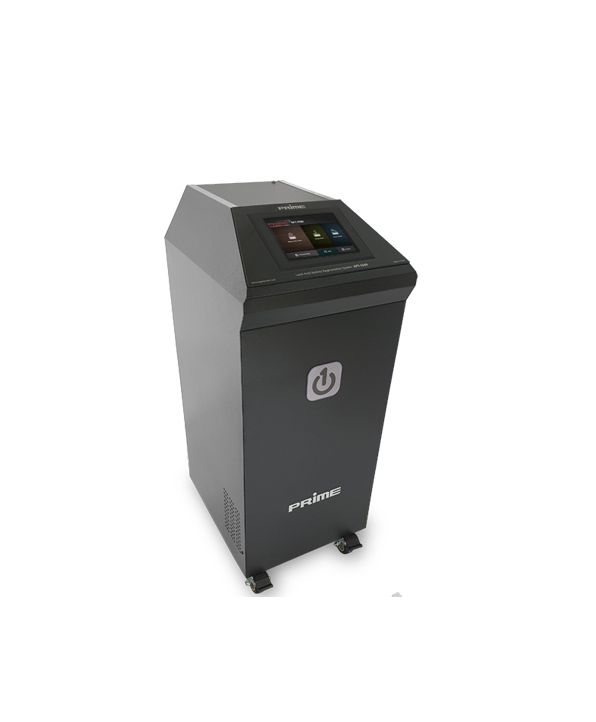

Prime RPT-S500 Battery Regenerator

Size: W 400mm X D 480mm X H 1010mm

Weight: Approx. 57.5Kg

Voltage & Frequency: AC 210 ~ 250V/50~60 Hz

Battery Voltage (Adjustable): DC 2V ~ 96V

Battery Capacity (Adjustable)

Optimization: 40Ah~1,000Ah

Maximum Expansion: ~3,000Ah (3 Time) for All types Lead-Acid Batteries

* Max. Up to 3,000Ah - After cooling batteries, try repeated regen-process.

Output Current: Max. 60A

Regeneration / Charge Method: High Frequency PULSE

RPT-S500

Maximum 3.5kW Power Consumption

Maximum input AC: 27A

Recommand using distribution board

Recommand input cable: more than 3C X 4 Sqmm
