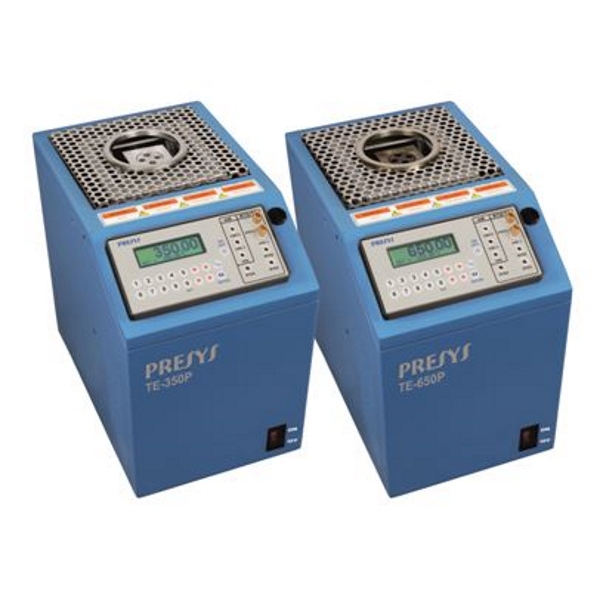

PRESYS TE-650P Dry Block Calibrator (high temperatures) (from ambient temperature to 650 °C, ± 0.05 °C)

Operating Range(ambient temperature: 23 °C): from ambient temperature to 650 °C

Accuracy with internal Reference: ±( 0.1 °C + 0.1% of reading)

Resolution: 0.01 °C

Stability: ± 0.05 °C

Radial Uniformity (homogeneity):

± 0.05 °C @ 50 °C

± 0.10 °C @ 300 °C

± 0.20 °C @ 650 °C

Axial Uniformity (homogeneity):

± 0.10 °C @ 50 °C

± 0.20 °C @ 300 °C

± 0.40 °C @ 650 °C

Heating Time: 18 min (50 °C to 650 °C)

Cooling Time: 22 min (650 °C to 100 °C)

Electric Power: 1000W

Well Diameter x Depth: Ø 32 mm x 124 mm

Weight: 10kg

Dimension (HxWxD): 260 x 180 x 270 mm
