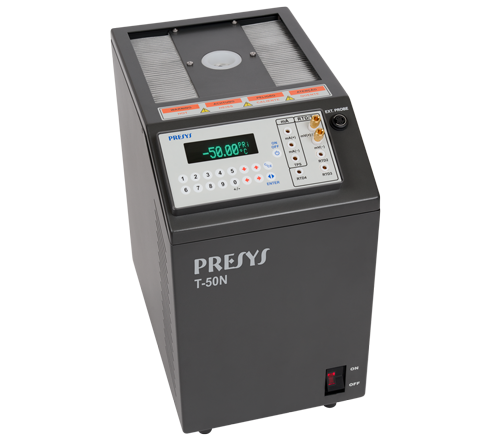

PRESYS T-50N Dry Block Temperature Calibrator (-50 °C to +155 °C; ± 0.02 °C)

Operating Range(ambient temperature: 23 °C): -50 °C to +155 °C

Accuracy:

internal reference: ± 0.1 °C

with external probe: ± 0.07 °C

Resolution: 0.01 °C

Stability: ± 0.02 °C

Radial Uniformity Dry Block: ± 0.02 °C Full range

Axial Uniformity (40mm) Dry Block:: ± 0.07 °C Full range

Heating Time: 11 min (25 °C to 140 °C)

Cooling Time: 25 min (25 °C to -50 °C)

Temperature Uniformity:0.05 °C

Power Supply: 115 or 230 Vac, 50/60 Hz

Electric Power: 400W

Units / Temperature Scales: °C or °F / IPTS-68 or ITS-90, user selectable

Display:Graphic vacuum fluorescent with contrast adjustment

Well Diameter x Depth:Ø 25.4 mm (1”) / 124 mm

Weight: 12.5kg

Dimension (HxWxD): 315 x 180 x 270 mm
