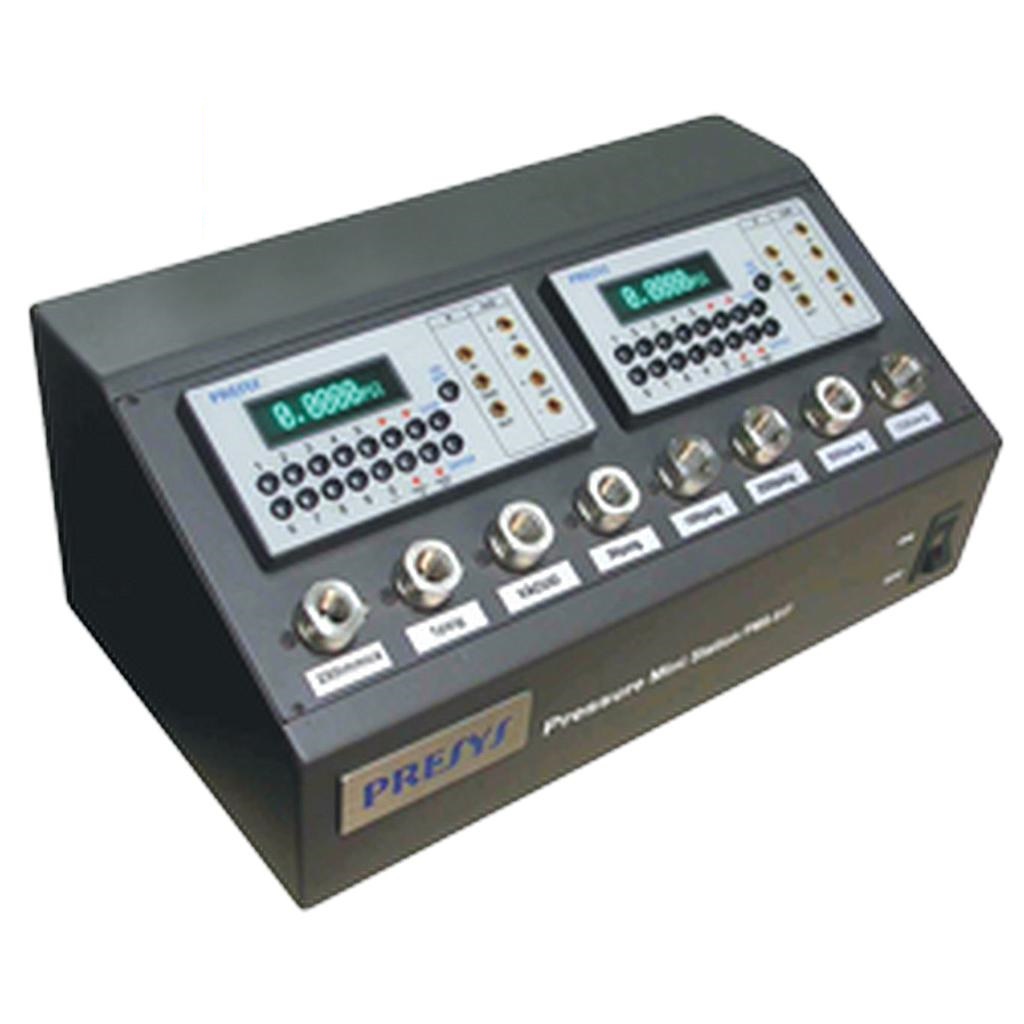

PRESYS PMS-517 Pressure Mini Station (0.025 %, 250 mmH₂O to 10,000 psi)

Input range
-Volt: -10 to 11V and 11 to 45V
+Resolution : 0.0001V
+Accuracy: ±0.02% FS
-mA: -5 to 24.5 mA
+ Resolution: 0.0001 mA
+ Accuracy: ±0.02% FS

Output range:
-Volt: -1 to 11 V
+Resolution: 0.0001V
+Accuracy: ±0.02% FS
-mA: 0 to 22 mA
+ Resolution: 0.0001 mA
+Accuracy: ±0.02% FS
Two-wire transmitter : 4-22 mA
Engineering units: pai, atm, kgf/cm2, inH2O, mH2O, cmH2O, mmH2O, inHg, cmHg, mmHg, bar, mbar, Pa, kPa, torr
Operation ambient: 0-50°C
Dimension & weight: 185x175x200 mm; 1.8kg ( single); 185x 338 x 200, 3kg ( double)
