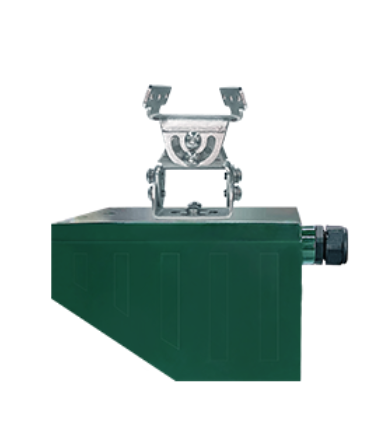

Precision Wave PWRV431-P Radar Velocity Meter (0.02 ~ 21 m/s)

Applications: Widely used in the flflow velocity measurement of rivers, channels, rubber dams, urban underground rainwater, and water outlet of sewage pipe network pumping stations.

Speed measurement range: 0.02~21m/s

Speed measurement accuracy: 8.8mm/s

Velocity radar beam angle: 12°×12°

Install Towards: To Upstream

Measurement duration: 2~240s

Sampling interval: 0s~5h

Frequency: 24GHz

Power supply: 6~30V DC

Supply current: 50mA@12V DC (working)

Signal output: RS485 Modbus

Shell material: ABS plastic

Working temperature: -40~80℃

Bluetooth function: Yes/No

Protection class: IP68
