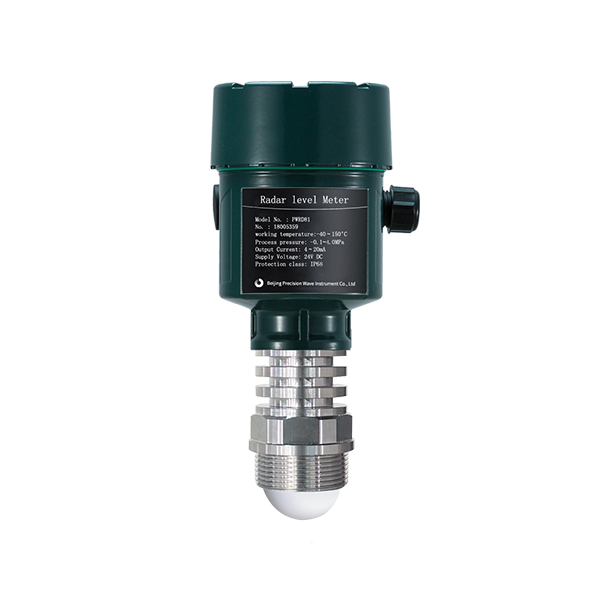

Precision Wave PWRD81 Radar Level Transmitter (80GHz; 10~120m)
ManufacturerPrecision Wave(View more products from this manufacturer)
ModelPWRD81
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Application:Measurement of liquid level in general liquid storage tanks, such as chemical industry, smelting.
Maximum range: 10m/20m/35m/85m/120m
Accuracy: ±1mm
Process connection: Thread/flange
Process temperature: -40~300℃
Process pressure: -0.1~4.0Mpa
Frequency: 80GHz
Signal output:
4~20mA/HART 24V DC 2/4-wire system;
4~20mA/HART 220V AC 4-wire system;
RS485/Modbus
Bluetooth function:Yes/No
Explosion-proof grade: Exia IIC T6 Ga;Exd IIC T6 Gb
Protection class: IP68
