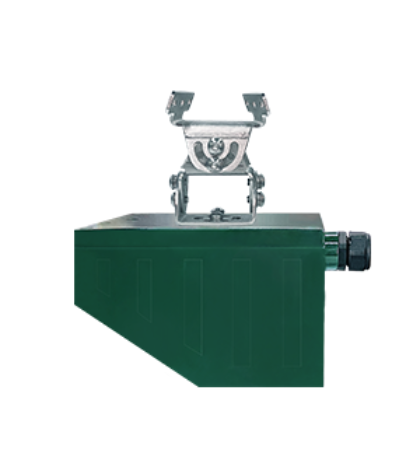

Precision Wave PWFL432-P Radar Flow Meter (20m; 0.02~21m/s)

Application: Widely used in flow measurement of agricultural irrigation canals, urban underground rainwater, sewage pipe networks, etc.

Water level range: 20m

Water level accuracy: ±1mm

Water level radar frequency: 80GHz

Water level radar beam angle: 8°

Shell material: ABS plastic

Speed measurement range: 0.02~21m/s

Velocity Radar Antenna Type: Sealed Lens Antenna

Wireless function: optional

Power supply: 6~30V DC

Working current: 65mA@12V DC

Flow velocity accuracy: 8.8mm/s

Velocity radar transmitting frequency: 24GHz

Velocity radar beam angle: 12°×12°

Working temperature: -40~80℃

Working humidity: ≤95%

Protection class: IP68

Application: still water or moving water

Interval: 5s-24h

Signal output: RS485 Modbus
