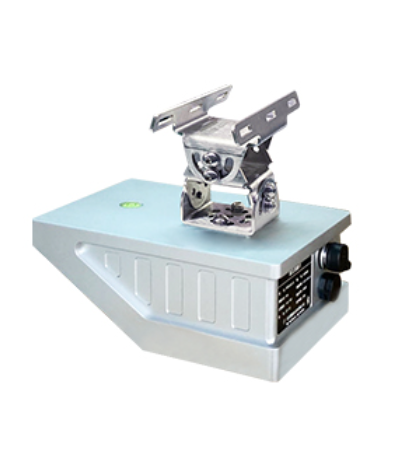

Precision Wave PWFL432-H Radar Flow Meter (45m / 85m; 0.02 ~ 21 m/s)

Application:  Flow measurement of river, reservoir gate, hydropower station, farmland irrigation canal, etc. . Suitable for small fluctuations, surface flow measurement.

Water level range: 45m/85m

Water level accuracy: ±1mm

Water level radar frequency: 80GHz

Water level radar beam angle: 8°

Shell material: Aluminium

Speed measurement range: 0.02~21m/s

Radar Antenna Type: Planar microstrip array antenna

Power supply: 6~30V DC

Working current: 65@mA 12V DC

Flow velocity accuracy: 8.8mm/s

Velocity radar frequency: 24GHz

Velocity radar beam angle: 12°×12°

Working temperature: -40~80℃

Bluetooth function: Yes/No

Working humidity: ≤95%

Protection class: IP68

Signal output: RS485 Modbus
