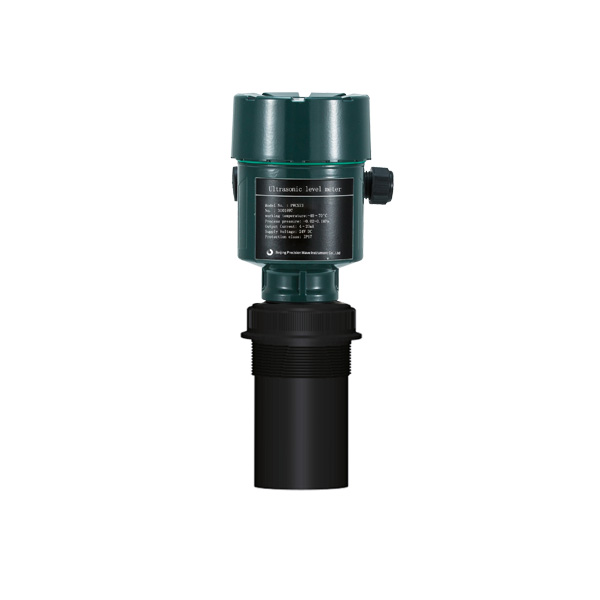

Application: liquid level measurement in various industrial fields, solid particle measurement, Especially in the water treatment industry.
Measuring range: standard transducer, liquid (0.4~15)m solid (0.3~6)m, anti-corrosion sealed transducer, liquid (0.4~10)m solid (0.3~6)m
Accuracy: ±0.25% (full scale)
Process connection: M66×2 or flange, bracket
Transducer shell material: PA66+GF30/ PVDF
Process temperature: (-40～70)℃
Process pressure: (-0.02～0.1)MPa
Accuracy: ±0.25% (full scale)
Signal output: (4~20)mA/HART protocol
Power supply: 24V DC two-wire system/four-wire system; 220V AC four-wire system
Explosion-proof grade: Exia IIB T6 Ga
Protection class: plastic IP66/aluminum IP67
