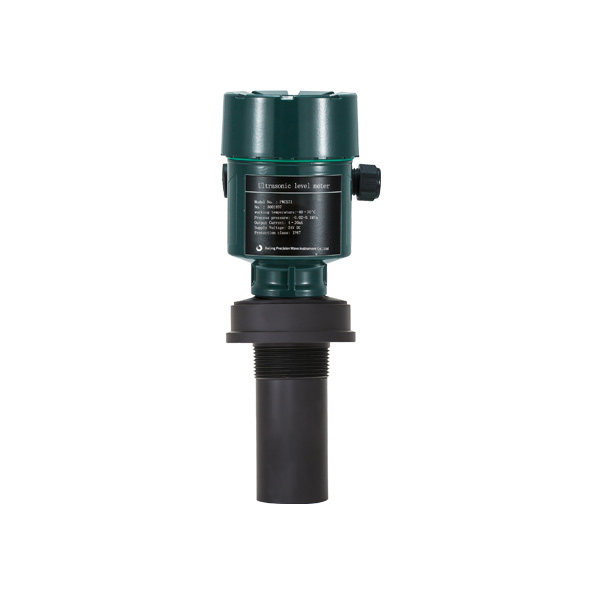

Precision Wave PWCS71 Ultrasonic Level Transmitter (0.25~5m, 0.25～2m)

Application: liquid level measurement in various industrial fields, solid particle measurement, Especially in the water treatment industry.

Measuring range:

Standard transducer,  liquid (0.25～5)m solid (0.25～2)m

Anti-corrosion sealed transducer,  liquid (0.25～4)m solid (0.25～2)m

Accuracy: ±0.25% (full scale)

Process connection: G1½”A thread or flange, bracket

Transducer shell material: PA66+GF30/ PVDF

Process temperature: (-40～70)℃

Process pressure: (-0.02～0.1)MPa

Accuracy: ±0.25% (full scale)

Signal output: (4~20)mA/HART protocol

Power supply: 24V DC two-wire system/four-wire system;220V AC four-wire system

Explosion-proof grade: Exia IIB T6 Ga

Protection class: plastic IP66/aluminum IP67
