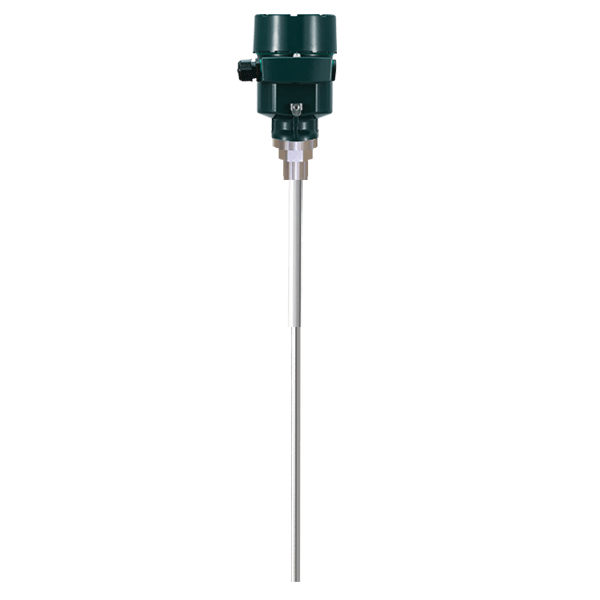

Precision Wave PWCAP211 Capacitive Level Switch (350mm/500mm)
ManufacturerPrecision Wave(View more products from this manufacturer)
ModelPWCAP211
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Standard: 350mm/500mm
Can customize: 500mm~3000mm
Power supply: 24V DC/220V AC
Relative humidity: less than 85%
Output signal: two sets of normally open and normally closed contacts
Contact capacity: 24V DC/8A; AC 220 v / 5A
Medium temperature: -60℃ ~ 200℃
Delay time: 0 ~ 99S(adjustable)
Protection grade: IP67
Probe material: stainless steel, PTFE/FEP
Explosion-proof grade: Exd IIC T6 Gb
Connection: defect “NPT threads; The flange
Installation: top mounting and side mounting
