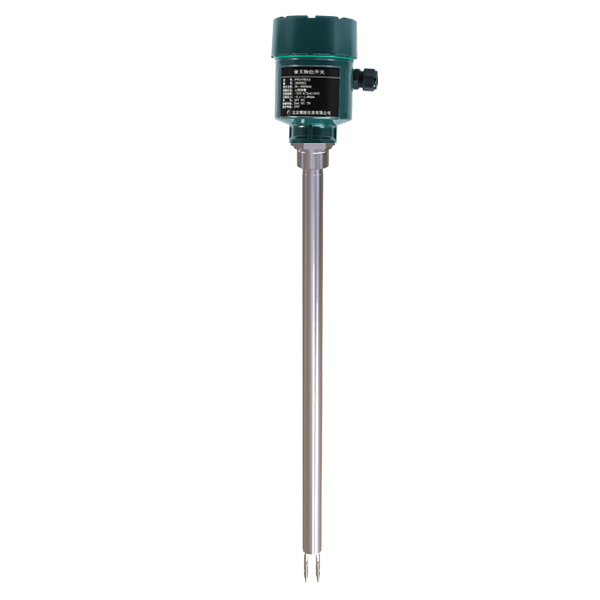

Precision Wave PWAVE212 Tuning Fork Level Switch (50 ~ 2000 mm)
ManufacturerPrecision Wave(View more products from this manufacturer)
ModelPWAVE212
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Application: liquid point measurement
Measurement range: (50 ~ 2000) mm
Process connection: screw thread, flange
The process temperature:
Conventional type: ( 50 ~ 150 ℃)
High temperature type: (50 ~ 250 ℃)
Process pressure: (-0.1 ~ 5.0) MPa
Frequency range: about 1200Hz
Output signal: two sets of normally open and normally closed contact
Contact capacity: 24V DC/8A; AC 220 v / 5 a
Explosion-proof grade: Exd IIC T6
Protection class: plastic IP66/aluminum IP67
