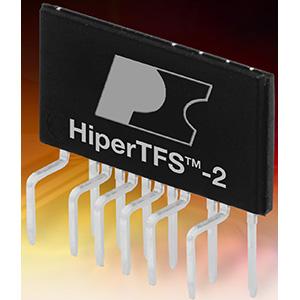

Power Integrations TFS7708H Flyback Controller Switched and Flyback Controller w/ FET

Shutdown: Shutdown

Topology: Flyback, Forward

Fall Time: 50 ns

Isolation: Isolated

Rise Time: 100 ns

Unit Weight: 4.675 g

Output Power: 343 W

Mounting Style: Through Hole

Output Current: 25 A

Output Voltage: 100 V

Duty Cycle - Max: 50 %

Number of Outputs: 2 Output

Switching Frequency: 140 kHz

Description/Function: Switched and flyback controller with FET

Operating Supply Current: 960 uA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
