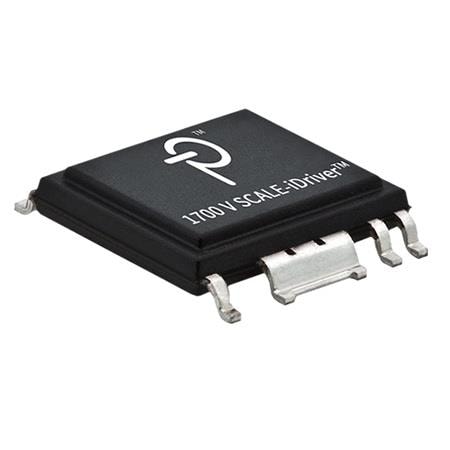

Power Integrations SID1112K IGBT, MOSFET Gate Drivers Sgl Ch 8.0A Fluxlink 250kHz 260ns 1.0A

Shutdown: No Shutdown

Fall Time: 1.125 us

Rise Time: 1.125 us

Logic Type: CMOS

Technology: Si

Configuration: Inverting

Mounting Style: SMD/SMT

Output Current: 1 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 22 V

Supply Voltage - Min: 4.75 V

Pd - Power Dissipation: 1.79 W

Propagation Delay - Max: 364 ns

Operating Supply Current: 16.3 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
