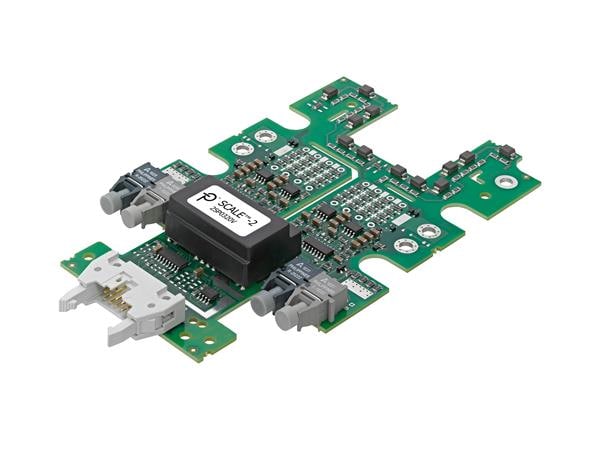

Power Integrations 2SP0320V2A0-FF900R12IP4 Half-Bridge ONLY for Infineon FF900R12IP4 module

Width: 94 mm

Height: 18 mm

Length: 150 mm

Fall Time: 25 ns

Rise Time: 7 ns

Unit Weight: 385.825 g

Output Power: 2 W

Mounting Style: Through Hole

Output Current: 20 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 15.5 V

Input Voltage - Min: 14.5 V

Supply Voltage - Max: 15.5 V

Supply Voltage - Min: 14.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Collector- Emitter Voltage VCEO Max: 1.2 kV
