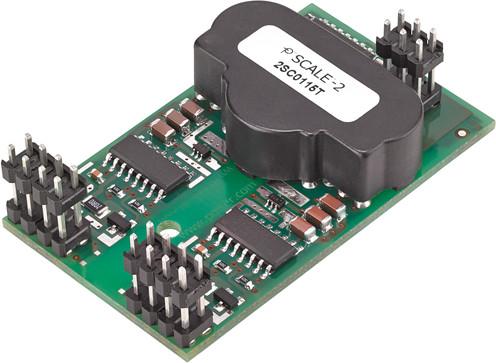

Power Integrations 2SC0115T2A0-12 Half-Bridge 1200V IGBT Driver SSD AAC 15A 1.2W

Fall Time: 12 ns

Rise Time: 6 ns

Unit Weight: 47.792 g

Output Power: 1.4 W

Configuration: Inverting

Mounting Style: Through Hole

Output Current: 15 A

Output Voltage: 700 mV

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 15.5 V

Input Voltage - Min: 14.5 V

Switching Frequency: 50 kHz

Supply Voltage - Max: 15.5 V

Supply Voltage - Min: 14.5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
