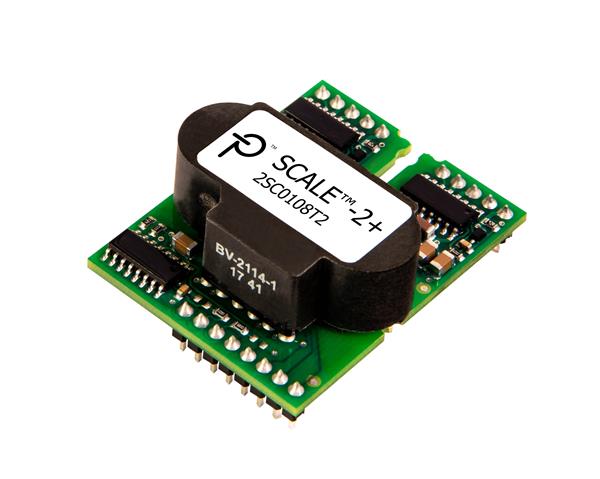

Power Integrations 2SC0108T2F1-17 Half-Bridge Dual Ch SCALE 1700V IGBT Driver HVIC

Width: 34.3 mm

Height: 16 mm

Length: 45 mm

Fall Time: 15 ns

Rise Time: 17 ns

Unit Weight: 41.338 g

Output Power: 1 W

Configuration: Inverting

Mounting Style: Through Hole

Output Current: 8 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 15.5 V

Input Voltage - Min: 14.5 V

Supply Voltage - Max: 15.5 V

Supply Voltage - Min: 14.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Collector- Emitter Voltage VCEO Max: 1.7 kV
