Positron 3782091D/50 Positron Drone Insulator Tester (50Hz)

Automatic drone-based solution for HV insulator inspections

AI-aided operations: once the drone is positioned in front of the insulator, the AI software assists the pilot in approaching the target and managing the inspection of the insulator string

Segmented inspection process with software recombination of measurements

Positron software recombines measurements to provide a complete view of the Electrical Field distribution

Fault detection within a few seconds after inspection completion

Electrical Field measurement performed directly on live-line insulators

Suitable for inspection of high-voltage transmission and distribution insulators

Effective for detecting degradation of all insulator types, including Porcelain and Composite insulators

Early fault detection based on Electric Field distribution variation

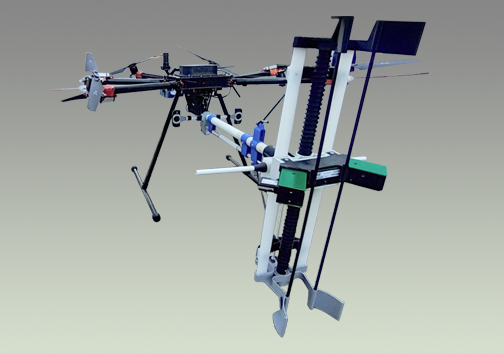

Custom drone and payload capable of contacting live-line insulators

Easy and fast inspection setup (less than 5 minutes per insulator)

Inspection performed by two operators

Zero risk for O&M personnel

Eliminates costly power interruptions, outages, and dangerous operating conditions
