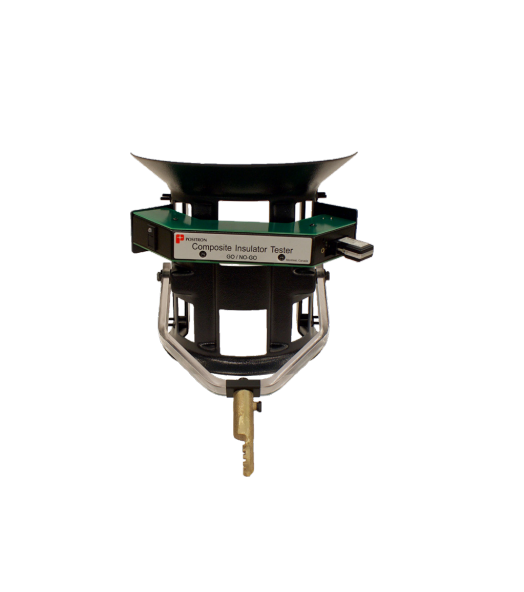

Positron 3782091C/50 Composite Insulator Tester

Maximum discs/skirts per insulator string: 150 skirts per insulator string

Minimum discs/skirts per insulator string: 10 skirts per insulator string

Maximum corona protection: 1 million Volts

Minimum electrical field: 10 kV/meter

Maximum memory capacity: 300 strings of insulators or 15,000 readings, whichever comes first

Maximum scanning speed: 5 skirts per second (Max) 0.5 skirts per second (Min)

Maximum time between uploading of cumulative data: 12 days

Maximum time between battery charges: 12 hours

Minimum time of battery recharging: 10 hours (one night)

Time tag update interval: 16 seconds

Operating temperature range for the probe: -22°F to 122°F (-30°C to 50°C)

Operating temperature for the logger: 32°F to 122°F (0°C to 50°C )

Dimensions W: 12” x H: 11” x D: 6” (30.5 x 28 x 15 cm)
