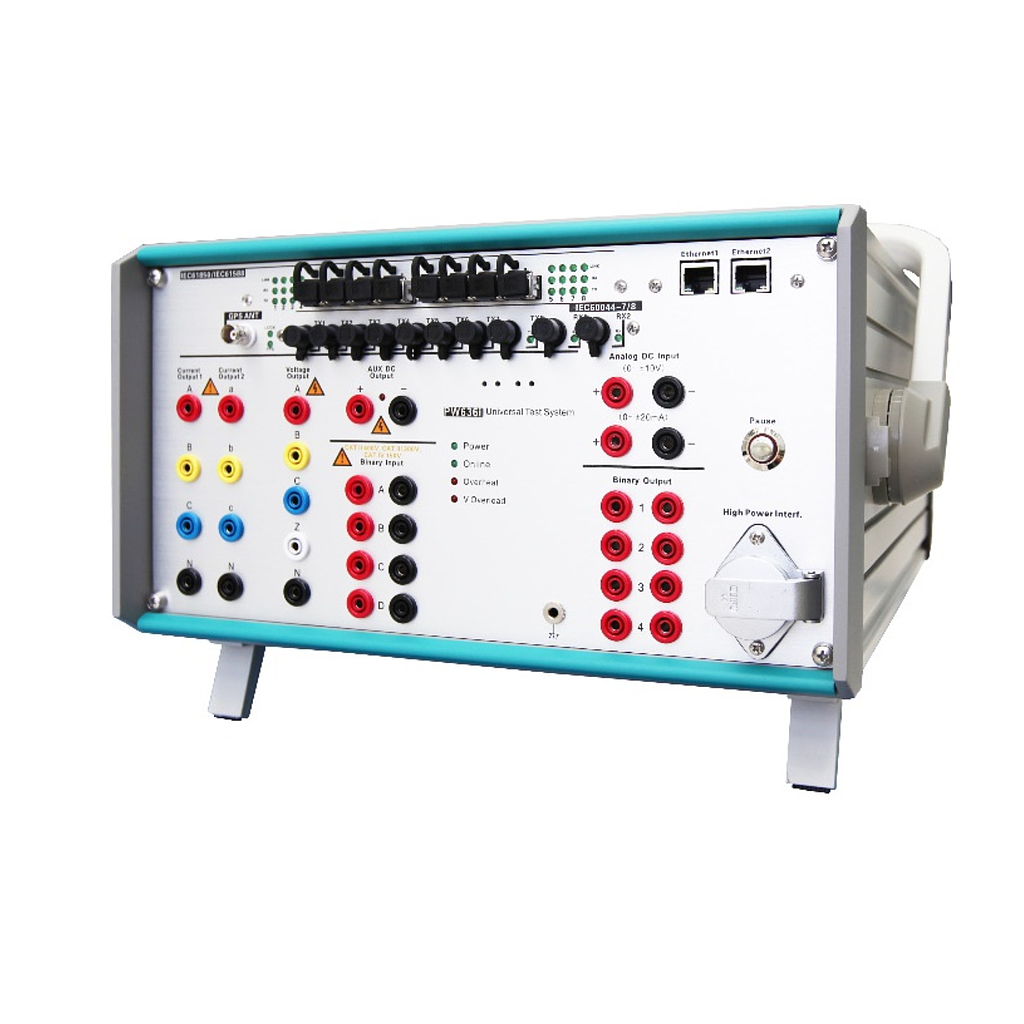

Ponovo PW636i-F Digital Relay Test Kit

Voltage generators

Setting range

4‐phase ac(L‐N): 4×0~300V

1‐phase ac(L‐L): 1×0~600V

dc (L‐N): 4×±0~300V

dc (L‐L): 1×±0~600V

Power

4‐phase ac(L‐N): 4×75VA typ., at 300V; 4×50VA guar., at 300V

3‐phase ac(L‐N): 3×100VA typ., at 300V; 3×85VA guar., at 300V

1‐phase ac(L‐L): 1×200VA typ., at 600V; 1×170VA guar., at 600V

dc (L‐N): 4×100W at 300 V

Accuracy:

error < 0.08% rd.+0.02% rg. ; guar. at 0~300V

error < 0.03% rd.+0.01% rg. typ. at 0~300V

Ranges: 300V

Resolution: 10mV for 300Vac

Distortion: < 0.05% typ., (< 0.1% guar.)

Current generators

Setting range

6‐phase ac(L‐N): 6×0~32A

3‐phase ac(2L‐N): 3×0~64A

1‐phase ac(6L‐N): 1×0~180A

dc (6L‐N): 1×±0~180A

Power

6‐phase ac(L‐N): 6×450VA typ. at 32A; 6×400VA guar. at 32A

3‐phase ac(2L‐N): 3×800VA typ. at 64A; 3×700VA guar. at 64A

1‐phase ac(6L‐N): 1×1200VA typ. at 180A; 1×1000VA guar. at 180A

1‐phase dc(6L‐N): 1×1400W typ. at 180A; 1×1000W guar. at 180A

Phase

Angle range: ‐360°~+360°

Accuracy: <0.05° typ., <0.1° guar. at 50/60Hz

Resolution: ±0.001°

Power supply

Nominal input voltage: 110~240Vac

Permissible tolerance: 90~260Vac

Nominal frequency: 50/60Hz

Permissible frequency: 45~65Hz

12 binary inputs, 8 binary outputs

Operation temperature: 0~+50°C

Storage temperature: ‐25~+70°C

Relative humidity: 5~95% non‐condensing

Weight: 23kg

Dimensions (W x H x D): 360mm ×208mm×467mm
